Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)
Request a Quote
JZD
PMAC drum motor used in conveyor systems for unit handling
Applications
Bulk materials handling and object production lines, belt conveyors used in logistics sorting, warehousing, food, security inspection, electronics, home appliances, tires, and other industries

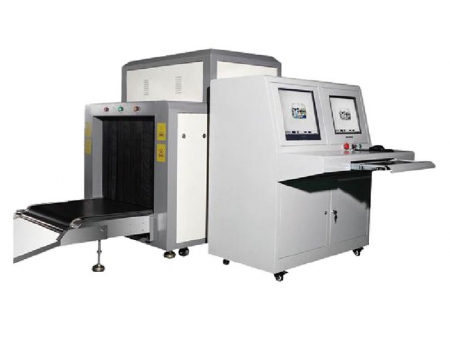

- Security scanner belt conveyor

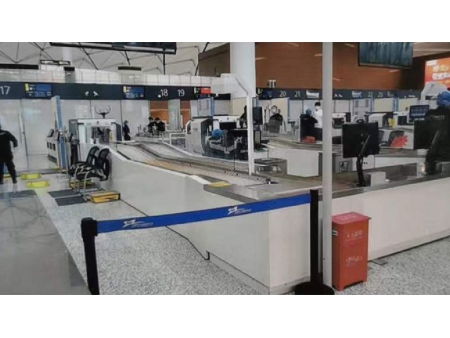

- Baggage belt conveyor
Features
- Permanent magnet motorized pulley has a drum diameter of Ø92 to Ø240mm and a power range of 0.25~5.5 kW.
- The drum motor adopts inverter control with sensorless vector control technology, achieving energy savings of up to 25%.
- Self-cooling is adopted.
- Mounting brackets and junction boxes are optional based on customer needs.
Technical Data
Drum Diameter D mm | Power P kW | Rated Torque Under Corresponding Belt Speed (m/s) Nm | Drum Length mm | |||||||
0.5 | 0.63 | 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | |||
Ø92 | 0.25 | 20 | 17 | 14 | 11 | 420~1000 | ||||
0.37 | 19.5 | 16 | 13 | 10 | ||||||
0.55 | 19 | 15 | 12 | 10 | ||||||
0.75 | 20 | 16 | 13 | |||||||
Ø100 | 0.25 | 19 | 15 | 12 | 420~1000 | |||||
0.37 | 20 | 17 | 14 | 11 | ||||||
0.55 | 20 | 16 | 13 | 10 | ||||||
0.75 | 20 | 17 | 14 | |||||||
Ø113 | 0.25 | 26 | 21 | 16 | 13 | 420~1300 | ||||
0.37 | 36 | 30 | 24 | 19 | 15 | 12 | ||||
0.55 | 35 | 28 | 23 | 18 | 14 | |||||
0.75 | 30 | 24 | 19 | 16 | ||||||
1.1 | 35 | 28 | 23 | |||||||
1.5 | 39 | 31 | ||||||||
Ø138 | 0.37 | 45 | 36 | 29 | 23 | 18.5 | 14.5 | 11.5 | 9.5 | 420~1500 |
0.55 | 42 | 35 | 28 | 22 | 17 | 14 | ||||
0.75 | 57 | 46 | 38 | 29 | 23 | 19 | ||||
1.1 | 82 | 67 | 54 | 42 | 34 | 28 | ||||
1.5 | 90 | 72 | 56 | 45 | 36 | |||||
2.2 | 90 | 72 | 57 | |||||||
3 | 90 | 72 | ||||||||
Ø165 | 0.55 | 84 | 67 | 53 | 42 | 34 | 26 | 470~1500 | ||
0.75 | 115 | 91 | 72 | 57 | 46 | 36 | 29 | |||
1.1 | 133 | 105 | 84 | 67 | 52 | 42 | 33 | |||
1.5 | 144 | 115 | 92 | 72 | 57 | 46 | ||||
2.2 | 134 | 105 | 84 | 67 | ||||||
Ø216 | 2.2 | 300 | 270 | 235 | 190 | 150 | 120 | 95 | 420~1500 | |
3 | 300 | 260 | 200 | 160 | 130 | |||||
4 | 300 | 260 | 215 | 170 | ||||||
5.5 | 260 | 236 | ||||||||
Ø240 | 2.2 | 325 | 260 | 205 | 160 | 130 | 105 | 590~1500 | ||
3 | 350 | 280 | 220 | 175 | 140 | |||||
4 | 375 | 290 | 235 | 188 | ||||||
5.5 | 325 | 260 |
