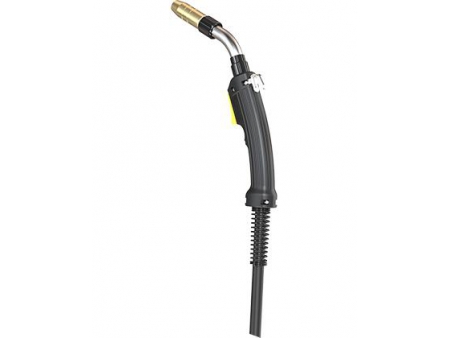

NB300, MIG/MAG Welding Gun
Request a Quote
Technical Data
Rated Current: 300A using C02 or 200A using mixed Gas
Duty Cycle: 60%
Wire Size: 0.8-1.2
Model
| Description | Length | Part Number |
| Welding Gun c/w Euro Fitting | 10ft/3M | NB300-10 |
| 12ft/4M | NB300-12 | |
| 15ft/5M | NB300-15 |
Components
| No. | Part Number | Description |
| 1 | Q512518S | O-Ring 12.5x1.8 |
| 2 | Q1401413 | Circlip For 4335 |
| 3 | 4323 | Rubber Cap |
| 4 | 4786 | Swan Neck 45° |
| 5 | 4780 | Insulating Nut |
| 6 | EG0002 | Hanger Hook |
| 7 | BRH2101 | Handle |
| 8 | BEJ2005 | Trigger |
| 9 | HS2101 | Front Cable Support Spring |
| 10 | BEL3010 | Cable Assembly 10ft/3m |
| BEL3012 | Cable Assembly 12ft/3.6m | |
| BEL3015 | Cable Assembly 12ft/3.6m | |
| 11 | ES2201 | Back Spring Cable Support |
| 12 | EH2201 | Back Handle |
| 13 | Q210406B | Screw M4x6 |
| 14 | EP3001 | Gun Plug Nut |
| 15 | BEU2001 | Bernard Euro Gun Plug |
| 16 | Q504010 | O-ring 4x1 |
| 17 | Q505217 | O-ring 5.28X1.78 |
