Nomex Braided Sleeving

Request a Quote

Website: http://sleeving-product.com/nomex-braided-sleeving-7-1.html

EX901

• Material: 1200D Nomex® fiber
• Color: Green
• Operating Temperature: -200°C to 350°C
• Cutting Method: Scissor cutting
• Packaging: Paper reel

Now

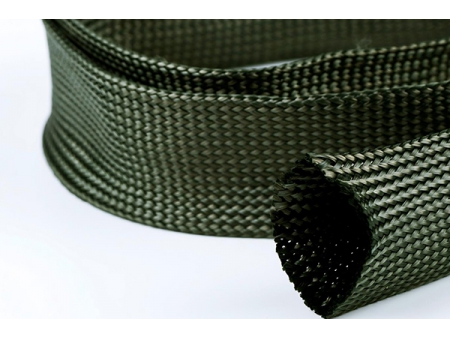

EX901 series braided sleeving is manufactured from Nomex® fibers using precision braiding techniques. It features flame retardancy, flexibility, and resistance to acids, oils, and alkalis. The sleeving effectively protects cables, hoses, and wire harnesses from high temperatures, flames, cuts, and abrasion.

Applications

This sleeving is designed for cable and harness protection in environments with extreme temperatures and fire exposure risks, including aerospace, motorsports, and high-temperature industrial applications.

Certifications

Parameters

Model	Flat Width (mm)	Application Range (mm)	Packaging Length (m/reel)	Item Code
EX901000308	3±1	1~4	200	NX-003
EX901001008	10±2	7~11	100	NX-010
EX901001308	13±2	14~18	100	NX-013
EX901001608	16±2	15~20	100	NX-016
EX901002008	20±3	20 ~23	100	NX-020

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
