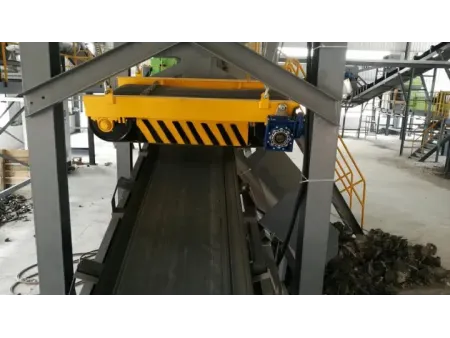

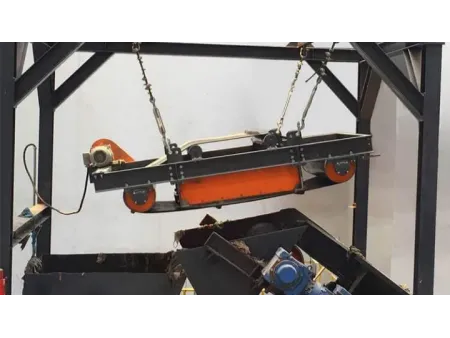

Overhead Magnetic Separator, Suspended Permanent Magnets

Request a Quote

Website: http://wastemachine-en.com/overhead-magnetic-separator-3-8.html

Video

Model	RCYD(C)-5	RCYD(C)-6	RCYD(C)-6.5	RCYD(C)-8	RCYD(C)-10	RCYD(C)-12	RCYD(C)-14	RCYD(C)-16
Belt Width (mm)	500	600	650	800	1000	1200	1400	1600
Rated Suspension Height (mm)	150	175	200	250	300	350	400	450
Magnetic Field Strength (mT)	60	60	70	70	70	70	70	70
Material Thickness (mm)	80	120	150	200	250	300	350	400
Drive Power (kW)	1.5	1.5	1.5	2.2	3	4	4	5.5
Belt Speed (m/s)	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5
Duty Cycle	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous
Dimension A (mm)	1900	2050	2165	2350	2660	2860	3225	3350
Dimension B (mm)	735	780	780	796	920	1010	1050	1180
Dimension C (mm)	935	1030	1080	1280	1550	1720	1980	2160
Dimension D (mm)	950	1100	1200	1300	1400	1550	1800	1950
Dimension E (mm)	753	753	888	1088	1335	1515	1755	1850
