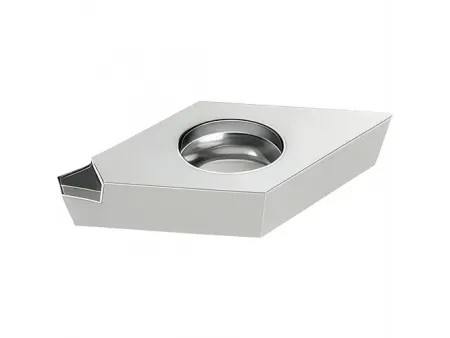

PCD Tools, DCGW

Request a Quote

Website: http://winicetech-en.com/pcd-tools-dcgw-2-3-2.html

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)

Technical Specifications

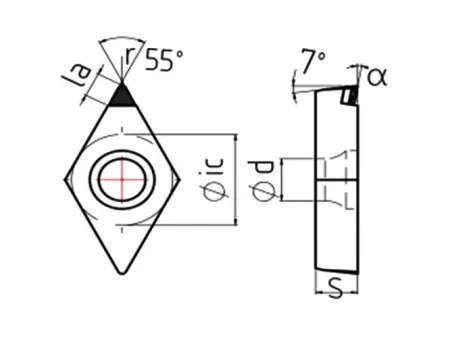

ISO Code	ANSI Code	Tips	Edge Length	Hole Diameter	Thickness	Rake	Nose Radius	Tip Length
			ic	Ød	s	α	r	la
DCGW070202	DCGW2(1.5)(0.5)	1N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	1N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	1N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	10°	0.8	2.5
DCGW070202	DCGW2(1.5)(0.5)	2N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	2N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	2N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	1N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	1N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	1N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	2N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	2N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	2N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	10°	0.8	2.5
