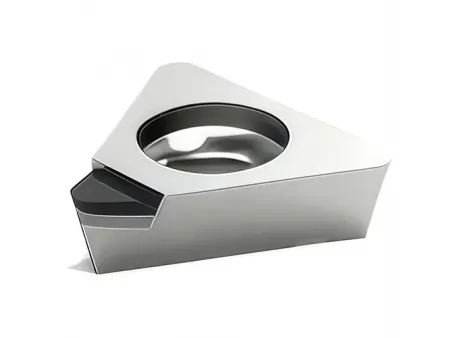

PCD Tools, TPGW

Request a Quote

Website: http://winicetech-en.com/pcd-tools-tpgw-2-3-4.html

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)

Technical Specifications

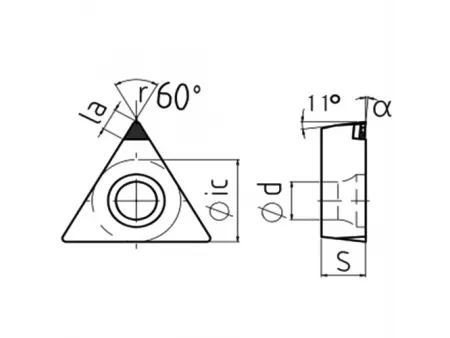

ISO Code	ANSI Code	Tips	Edge Length	Hole Diameter	Thickness	Rake	Nose Radius	Tip Length
			ic	Ød	s	α	r	la
TPGW080202	TPGW(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	0°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	5°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	10°	0.2	2.5
TPGW080204	TPGW(1.5)(1.5)1	1N	4.76	2.4	2.38	0°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	1N	4.76	2.4	2.38	5°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	1N	4.76	2.4	2.38	10°	0.4	2.5
TPGW080208	TPGW(1.5)(1.5)2	1N	4.76	2.4	2.38	0°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	1N	4.76	2.4	2.38	5°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	1N	4.76	2.4	2.38	10°	0.8	2.5
TPGW080202	TPGW(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	0°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	5°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	10°	0.2	2.5
TPGW080204	TPGW(1.5)(1.5)1	3N	4.76	2.4	2.38	0°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	3N	4.76	2.4	2.38	5°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	3N	4.76	2.4	2.38	10°	0.4	2.5
TPGW080208	TPGW(1.5)(1.5)2	3N	4.76	2.4	2.38	0°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	3N	4.76	2.4	2.38	5°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	3N	4.76	2.4	2.38	10°	0.8	2.5
TPGW110302	TPGW22(0.5)	1N	6.35	3.3	3.18	0°	0.2	2.5
TPGT110302	TPGT22(0.5)	1N	6.35	3.3	3.18	5°	0.2	2.5
TPGT110302	TPGT22(0.5)	1N	6.35	3.3	3.18	10°	0.2	2.5
TPGW110304	TPGW221	1N	6.35	3.3	3.18	0°	0.4	2.5
TPGT110304	TPGT221	1N	6.35	3.3	3.18	5°	0.4	2.5
TPGT110304	TPGT221	1N	6.35	3.3	3.18	10°	0.4	2.5
TPGW110308	TPGW222	1N	6.35	3.3	3.18	0°	0.8	2.5
TPGT110308	TPGT222	1N	6.35	3.3	3.18	5°	0.8	2.5
TPGT110308	TPGT222	1N	6.35	3.3	10°	0.8	2.5
TPGW110302	TPGW22(0.5)	3N	6.35	3.3	3.18	0°	0.2	2.5
TPGT110302	TPGT22(0.5)	3N	6.35	3.3	3.18	5°	0.2	2.5
TPGT110302	TPGT22(0.5)	3N	6.35	3.3	3.18	10°	0.2	2.5
TPGW110304	TPGW221	3N	6.35	3.3	3.18	0°	0.4	2.5
TPGT110304	TPGT221	3N	6.35	3.3	3.18	5°	0.4	2.5
TPGT110304	TPGT221	3N	6.35	3.3	3.18	10°	0.4	2.5
TPGW110308	TPGW222	3N	6.35	3.3	3.18	0°	0.8	2.5
TPGT110308	TPGT222	3N	6.35	3.3	3.18	5°	0.8	2.5
TPGT110308	TPGT222	3N	6.35	3.3	3.18	10°	0.8	2.5
TPGW160302	TPGW32(0.5)	1N	9.525	4.4	3.18	0°	0.2	2.5
TPGT160302	TPGT32(0.5)	1N	9.525	4.4	3.18	5°	0.2	2.5
TPGT160302	TPGT32(0.5)	1N	9.525	4.4	3.18	10°	0.2	2.5
TPGW160304	TPGW321	1N	9.525	4.4	3.18	0°	0.4	2.5
TPGT160304	TPGT321	1N	9.525	4.4	3.18	5°	0.4	2.5
TPGT160304	TPGT321	1N	9.525	4.4	3.18	10°	0.4	2.5
TPGW160308	TPGW322	1N	9.525	4.4	3.18	0°	0.8	2.5
TPGT160308	TPGT322	1N	9.525	4.4	3.18	5°	0.8	2.5
TPGT160308	TPGT322	1N	9.525	4.4	3.18	10°	0.8	2.5
TPGW160302	TPGW32(0.5)	3N	9.525	4.4	3.18	0°	0.2	2.5
TPGT160302	TPGT32(0.5)	3N	9.525	4.4	3.18	5°	0.2	2.5
TPGT160302	TPGT32(0.5)	3N	9.525	4.4	3.18	10°	0.2	2.5
TPGW160304	TPGW321	3N	9.525	4.4	3.18	0°	0.4	2.5
TPGT160304	TPGT321	3N	9.525	4.4	3.18	5°	0.4	2.5
TPGT160304	TPGT321	3N	9.525	4.4	3.18	10°	0.4	2.5
TPGW160308	TPGW322	3N	9.525	4.4	3.18	0°	0.8	2.5
TPGT160308	TPGT322	3N	9.525	4.4	3.18	5°	0.8	2.5
TPGT160308	TPGT322	3N	9.525	4.4	3.18	10°	0.8	2.5
TPGW160402	TPGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
TPGT160402	TPGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
TPGT160402	TPGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
TPGW160404	TPGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
TPGT160404	TPGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
TPGT160404	TPGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
TPGW160408	TPGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
TPGT160408	TPGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
TPGT160408	TPGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
TPGW160402	TPGW33(0.5)	3N	9.525	4.4	4.76	0°	0.2	2.5
TPGT160402	TPGT33(0.5)	3N	9.525	4.4	4.76	5°	0.2	2.5
TPGT160402	TPGT33(0.5)	3N	9.525	4.4	4.76	10°	0.2	2.5
TPGW160404	TPGW331	3N	9.525	4.4	4.76	0°	0.4	2.5
TPGT160404	TPGT331	3N	9.525	4.4	4.76	5°	0.4	2.5
TPGT160404	TPGT331	3N	9.525	4.4	4.76	10°	0.4	2.5
TPGW160408	TPGW332	3N	9.525	4.4	4.76	0°	0.8	2.5
TPGT160408	TPGT332	3N	9.525	4.4	4.76	5°	0.8	2.5
TPGT160408	TPGT332	3N	9.525	4.4	4.76	10°	0.8	2.5
