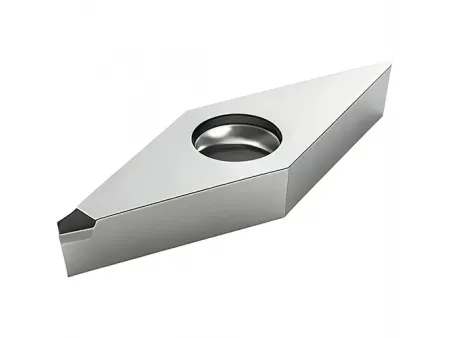

PCD Tools, VBGW

Request a Quote

Website: http://winicetech-en.com/pcd-tools-vbgw-2-3-5.html

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)

Technical Specifications

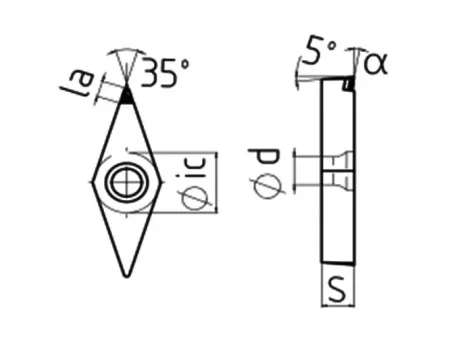

ISO Code	ANSI Code	Tips	Edge Length	Hole Diameter	Thickness	Rake	Nose Radius	Tip Length
			ic	Ød	s	α	r	la
VBGW110302	VBGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
VBGT110302	VBGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
VBGT110302	VBGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
VBGW110304	VBGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
VBGT110304	VBGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
VBGT110304	VBGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
VBGW110308	VBGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
VBGT110308	VBGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
VBGT110308	VBGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
VBGW110302	VBGW22(0.5)	2N	6.35	2.8	3.18	0°	0.2	2.5
VBGT110302	VBGT22(0.5)	2N	6.35	2.8	3.18	5°	0.2	2.5
VBGT110302	VBGT22(0.5)	2N	6.35	2.8	3.18	10°	0.2	2.5
VBGW110304	VBGW221	2N	6.35	2.8	3.18	0°	0.4	2.5
VBGT110304	VBGW221	2N	6.35	2.8	3.18	5°	0.4	2.5
VBGT110304	VBGW221	2N	6.35	2.8	3.18	10°	0.4	2.5
VBGW110308	VBGW222	2N	6.35	2.8	3.18	0°	0.8	2.5
VBGT110308	VBGT222	2N	6.35	2.8	3.18	5°	0.8	2.5
VBGT110308	VBGT222	2N	6.35	2.8	3.18	10°	0.8	2.5
VBGW160402	VBGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
VBGT160402	VBGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
VBGT160402	VBGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
VBGW160404	VBGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
VBGT160404	VBGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
VBGT160404	VBGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
VBGW160408	VBGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
VBGT160408	VBGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
VBGT160408	VBGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
VBGW160402	VBGW33(0.5)	2N	9.525	4.4	4.76	0°	0.2	2.5
VBGT160402	VBGT33(0.5)	2N	9.525	4.4	4.76	5°	0.2	2.5
VBGT160402	VBGT33(0.5)	2N	9.525	4.4	4.76	10°	0.2	2.5
VBGW160404	VBGW331	2N	9.525	4.4	4.76	0°	0.4	2.5
VBGT160404	VBGT331	2N	9.525	4.4	4.76	5°	0.4	2.5
VBGT160404	VBGT331	2N	9.525	4.4	4.76	10°	0.4	2.5
VBGW160408	VBGW332	2N	9.525	4.4	4.76	0°	0.8	2.5
VBGT160408	VBGT331	2N	9.525	4.4	4.76	5°	0.8	2.5
VBGT160408	VBGT331	2N	9.525	4.4	4.76	10°	0.8	2.5
