QTLB-36D, MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 350A
Rating: Mixed Gas: 300A
Duty Cycle: 60%
Wire Size: 0.8-1.2
Order Part No.
| 6M | 0°NECK | QTLB-36D-6 |
| 45°NECK | QTLB-36D-6 | |
| 8M | 0°NECK | QTLB-36D-8 |
| 45°NECK | QTLB-36D-8 |

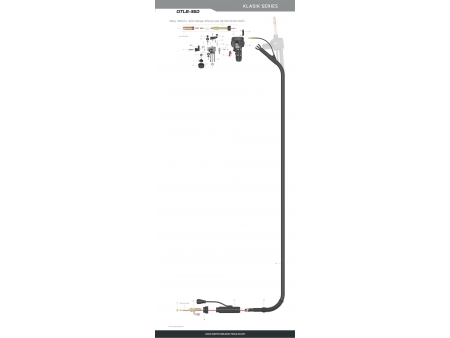

Components
| No. | Part Number | Description |
| 1 | LTF31180 | Swan Neck 0° |
| LTF3245 | Swan Neck 45° | |
| 2 | LTX2001 | Gear Box Assembly |
| 3 | LTF3111 | Straight Conductor Tube |
| LTF3112 | Goose Conductor Tube | |
| 4 | LTX2011 | Pin Head Tube |
| 5 | LTX2012 | Contact Adaptor |
| 6 | LTX2013 | Gas Connector |
| 7 | LGF2111 | Nut |
| 8 | LTZ2012 | Potentiometer Housing |
| 9 | LTZ2013 | WFS Control Knob |
| 10 | LTH2112 | Nut Handle |
| 11 | LGX2018 | Key |
| 12 | LGX2019 | Drive Roll(0.8/0.9mm) |
| LGX2020 | Drive Roll 1.2mm | |
| 13 | Q8210* | Potentiometer 10KΩ |
| Q8205* | Potentiometer 5KΩ | |
| Q8201* | Potentiometer 1KΩ | |
| 14 | LZ3601 | Motor |
| 15 | LTX2015 | Clamp |
| 16 | LGX2016* | Push Roll(0.8/0.9mm) |
| LGX2017 | Push Roll 1.2mm | |
| 17 | LGX2015 | Bearing |
| 18 | LTY2001 | Press Arm Shaft |
| 19 | LGX2012 | Press Arm Spring |
| 20 | LGX2011 | Press Arm Bolt |
| 21 | EJ0003 | Trigger Switch |
| 22 | LGH2011 | Cover,Drive Roll |
| 23 | LTH2101 | Handle |
| 24 | LTH2111 | Cable Clamp |
| 25 | Cable Assembly 6m | |
| 26 | SS5201 | Backing Spring Cable Support |
| 27 | SH5201 | Back Handle |
| 28 | EP3001 | Gun Plug Nut |
| 29 | MV0010 | 10 Pin Connector |
| 30 | LTU2001 | Euro Gun Plug |
| 31 | EU1011 | Nut M10x1 |
| 32 | LTR1160* | Liner,Use Swan Neck 180° |
| LTR31168 | Liner,Use Swan Neck 45° |
