Multi-Stage Spray Dryer
The spray dryer with fluid bed drying system combines the fluid bed drying technology and spray drying technology so that the granule shape and size can be easily controlled. The dryer produced by Jiangsu Xiandao can be used for drying and granulating of different products. This dryer can realize granulating of different diameters according to your requirements after realizing powder drying, so that it can achieve your processing requirements.
- FSD Small Scale
- MSD (Multi Stage Dryer) / FSD
During the manufacturing process carried out by spray dryer with fluid bed drying system, there will be no dust. And it can conduct drying of material featuring thermo-plasticity and moisture absorption. During the drying process, the temperature of the material will not go up so there will be no metamorphose of material featuring thermo-plasticity caused by lifting temperature.
The product produced by spray dryer with fluid bed drying system:
| Item | PFSD product |
| Average granule diameter | 80～500μm |
| Granule size distribution | Wide |
| Granule shape | Amorphous |
| Free fluidity | Superior |
| Solubility | Superior |
| Dust free | Yes |
This spray dryer can produce the products of the following specification from liquid material:
① Powder product (average granule diameter: 50μ～100μ)
② Granule product (average granule diameter: 150μ～400μ)
③ Fine granule product (average granule diameter: 70μ～120μ)

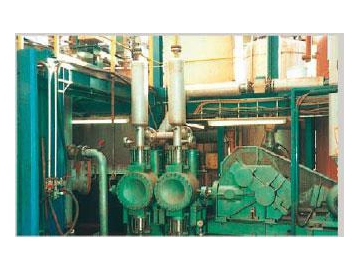

- Material feeding pumpFELUWA high pressure pump imported from Germany

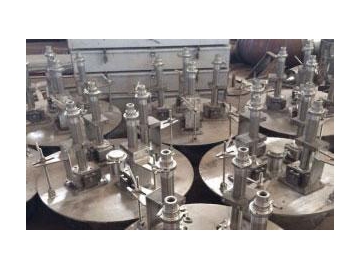

- Atomizer

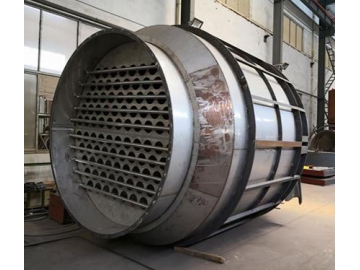

Air distributor: it is installed at the top of the tower so that it can be used to control the air flow of inside the drying tower.
Air heating system: it can be used to provide hot air for drying. The heating system can adopt petroleum, natural gas, steam or electrical heating system.

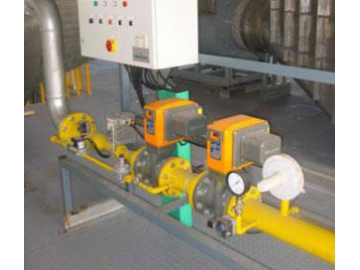

- Direct-fired combustor control assembly

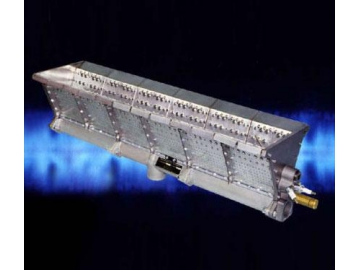

- Direct-fired combustor nozzle

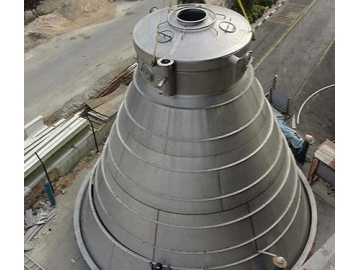

- Drying tower
- Exhaust system

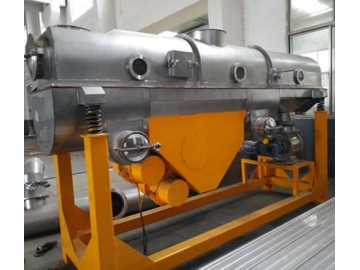

- Powder processing device
Jiangsu Xiandao provides various kinds of drying equipment and granulating machinery. We can also provide related supporting services and more processing equipment sets according to your practical requirements. We can design the drying production line according to your factory, provide related pre-drying and post-drying equipment and on-site installation services. We can guide the installation as well according to practical circumstances and provide related guidance and maintenance. If you want to learn more details about this product and service information, please contact us. The professional will give you answers.
