Slitting Machine
Slitting Machine

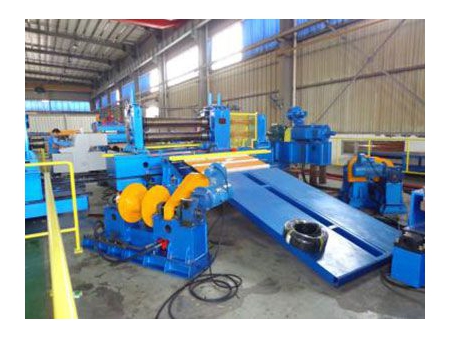

Our slitting machine is the slitting equipment designed for plate uncoiling, leveling, slitting and rewinding. Except manual punching, all other processes of the production line are under PLC control, realizing a high level of automation.
Main Components

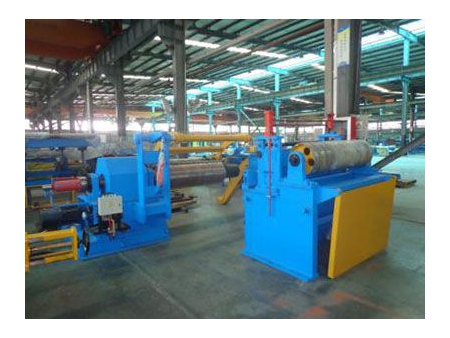

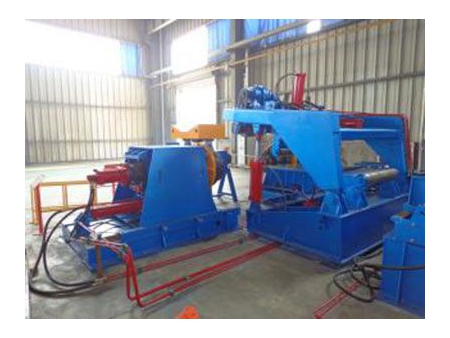

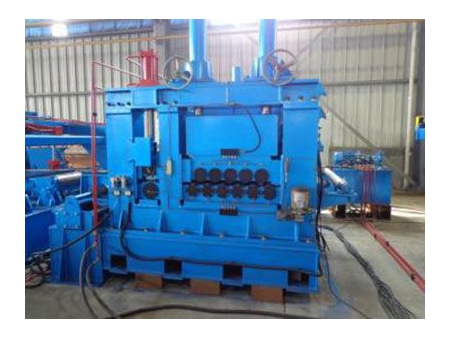

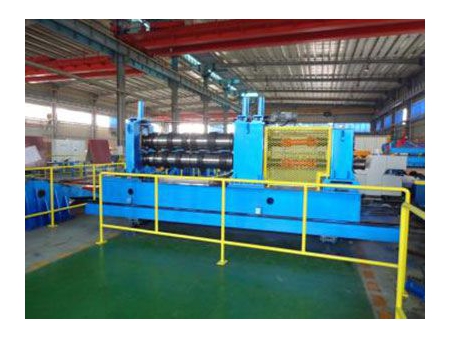

Jinggong slitting machine is mainly comprised of loading and unloading cars, hydraulic uncoiler, straight head feeding machine, corrective mechanism, leveling traction machine, shearing machine, slitter, scrap winder, material separator, tensioner, material pressing device, hydraulic system, and electrical system.
| Item | Parameters |
| Suitable material | Hot rolled steel plate, cold rolled low carbon steel plate, galvanized steel plate, stainless steel plate |
| Plate thickness | 0,3 –14 (mm) |
| Plate width | 600~2500mm |
| Slitting width | ≥ 40 (mm) |
| Slitting accuracy | ±0.1-±0.15 (mm) |
| Max. slitting speed | 100m/min(stepless, adjustable) |
| Compressed air | Pressure P=0.4~0.7 (Mpa) |
Established in 1968, Jinggong Science & Technology is an experienced slitting machine manufacturer and supplier in China. In addition to the slitter, we offer other steel structure machines, such as shot blasting machine, bending machine, H beam welding machine, and digital folder etc. Our products have obtained the ISO9000 and CE certificates and are sought after in over 60 countries, including America, Australia, Bulgaria, Argentina, Egypt, and India. Thank you for browsing our website! We are looking forward to working with you!
