Drilling Machine
Drilling Machine JPZ160A

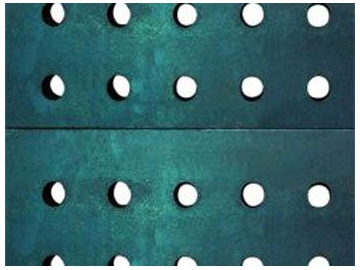

Our drilling machine is of CNC control system, X, Y axis AC servo control and Z axis hydraulic feeding, so it realizes quick positioning and drilling. The drill has been awarded 2 patents of utility model, and is widely used for drilling of yoke plate and plate-like parts in steel constructions.
Main Components
Jinggong drilling machine mainly consists of lathe bed, mobile gantry, drilling head, convertible workstation, electric control system, hydraulic system, cooling system, and chip cleaner.
| Item | Parameter |
| Max. processing thickness of workpiece | 80 mm |
| Max. processing size of workpiece | One cardinal point: 1650x1000 mm |
| Two cardinal points: 1000x825 mm | |
| Four cardinal points:825x500 mm | |
| Max. drilling diameter | Ф50 mm |
| Spindle speed | 130-400, stepless speed regulation (r/min) |
| Max. travel of spindle | 180 (Cylinder feeding) mm |
| No. of worktable grip cylinder | 12 |
| Travelling speed of X, Y axle | 12 m/min |
| Total power | About 12 kw |
Jinggong Science & Technology, a China drilling machine manufacturer and supplier, can provide a wide range of steel structure machines, such as shot blasting machine, bending machine, slitting machine, and cut to length machine etc. Our products are ISO9000 and CE certified, and are very popular in the USA, Cambodia, Algeria, Lebanon, Malaysia, and more. For more detailed product information, please browse our website or contact us directly.
