Traction motors predominantly employ Permanent Magnet Synchronous Motors (PMSM) which utilize permanent magnets to generate their magnetic fields.

For PMSMs, the commonly used magnet materials include

  • Samarium-Cobalt (SmCo) Magnets: Recognized for their high magnetic energy product, which reaches up to 30-35MGOe. They are favored for their high operating temperatures, safety, reliability, and stability, especially in high-speed rail transport surpassing 350km/h.
  • Neodymium Iron Boron (NdFeB) Magnets: Widely incorporated in traditional PMSMs. However, they're gradually being replaced by SmCo magnets in the rail transport sector.

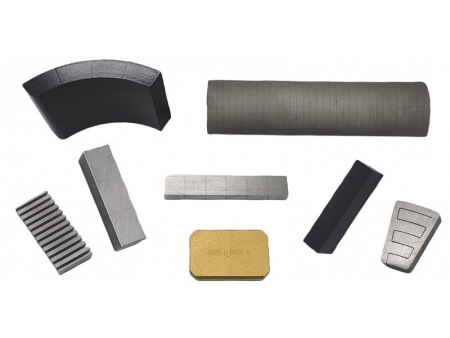

Popular magnet shapes for PMSM applications include

  • Block Magnets: Installed on the motor's rotor, they interact with the stator's magnetic field.
  • Laminated Magnets: Laminated magnets are designed as multiple layers to reduce eddy current losses at high speeds, lowering motor temperature and the risk of magnet failure.
  • Arc Magnets: Suitable for PMSM applications where specific magnetic field generation is required.
