Water Injection Pump for Coal Mine

Request a Quote

Website: http://groutpump-en.com/water-injection-pump-3-2-2-5.html

BZW Series 3

Max. pressure: 63 MPa
Max. flow: 200 L/min
Dimensions: 1765×1100×870 mm; 2000×1200×900 mm
Weight: 1350 kg

The BZW series water injection pumps manufactured by Juneng feature a compact structure, small size, light weight, and high efficiency. They are suitable for conveying water, emulsions, and chemical liquids with properties similar to water and are widely used in the coal mining industry.

These pumps are particularly suitable for mobile operating conditions and serve as ideal power units for high-pressure water jet equipment. Extended models of the series can also be used to transport slurry and cement slurry with certain viscosities.

The pump head is equipped with an overflow valve on one end and a throttle valve or pressure gauge with a high-pressure hose connector on the other, enabling system pressure regulation and preventing overpressure. The pump offers safe and reliable operation, incorporates a self-circulation system, and is easy to operate.

Applicable standards for water injection pumps:

MT/T 188.2-2000 Coal Mine Emulsion Pump Station – Emulsion Pump
Q/JN001—2022 BZW Series Water Injection Pump

Specifications

Item		Unit	Value
Model		/	BZW80/63(A)	BZW125/40	BZW200/31.5
Rated Flow		L/min	80	125	200
Rated Pressure		MPa	63	40	31.5
Rated Pump Speed		strokes/min	405	333	500
Plunger Dia.		mm	30	40	45
Plunger Stroke		mm	95	100	95
No. of Plungers		pcs	3	3	3
Large Gear Teeth		pcs	84	89	80
Small Gear Teeth		pcs	23	20	27
Noise Level		dB(A)	94	94	96
Volumetric Eff.		%	91	90	91
Total Eff.		%	83	81	83

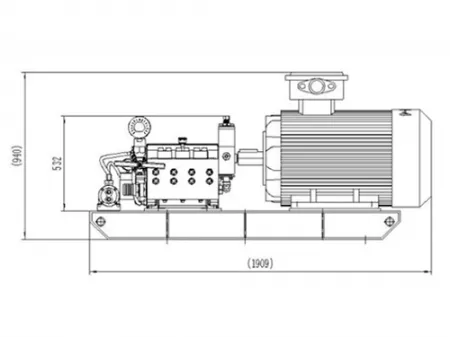

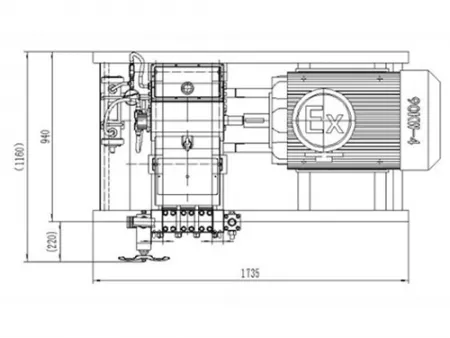

Dimensions		mm	1765×1100×870	2000×1200×900	1765×1100×870
Weight		kg	1350	1350	1350
Motor Power	Motor model	/	YBKE3-280M-4	YBKE3-280M-4	YBK3-315S-4
	Rated power	kW	90	90	110
	Rated voltage	V	660/1140	660/1140	660/1140
	Rated speed	r/min	1485	1485	1480
	Rated eff.	%	95.2	95.2	95.3

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.
