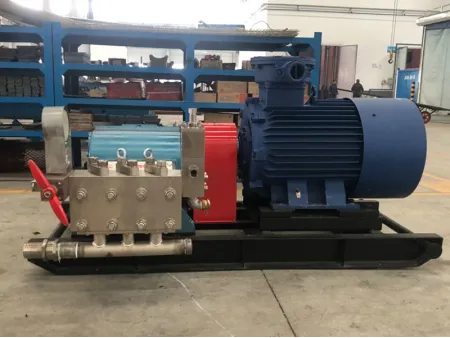

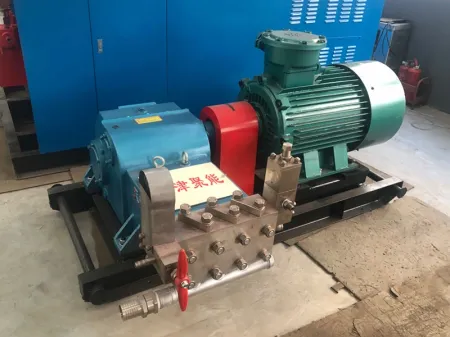

Water Injection Pump for Coal Mine

Request a Quote

Website: http://groutpump-en.com/water-injection-pump-3-2-2-4.html

BZW Series 2

Max. pressure: 63 MPa
Max. flow: 160 L/min

BZW series 2 water injection pump is designed to convey water, emulsions, and chemical liquids with properties similar to water. It is commonly used in the coal mining industry for applications that require high-pressure liquid equipment. These pumps are especially suitable for mobile operating conditions and serve as ideal power units for high-pressure water jet systems. The extended models can also handle slurry and cement slurry with a certain viscosity.

The pump head features an overflow valve on one end and a throttle valve or pressure gauge with a high-pressure hose connector on the other, enabling pressure adjustment and preventing the pump from exceeding its rated pressure. Additionally, the pump is safe and reliable, includes a self-circulation system, and is easy to operate.

Applicable standards for water injection pumps:

MT/T 188.2-2000 Coal Mine Emulsion Pump Station – Emulsion Pump
Q/JN001—2022 BZW Series Water Injection Pump

Specifications

Model		Unit	BZW80/63	BZW100/50	BZW125/40	BZW100/40	BZW125/31.5	BZW160/25	BZW100/31.5	BZW125/25	BZW160/20	BZW100/20	BZW125/16	BZW160/12.5
Rated Flow		L/min	80	100	125	100	125	160	100	125	160	100	125	160
Rated Pressure		MPa	63	50	40	40	31.5	25	31.5	25	20	20	16	12.5
Rated Pump Speed		strokes/min	333	333	333	333	333	333	333	333	333	333	333	333
Plunger Dia.		mm	32	35	40	35	40	45	35	40	45	35	40	45
Plunger Stroke		mm	100	100	100	100	100	100	100	100	100	100	100	100
No. of Plungers		pcs	3	3	3	3	3	3	3	3	3	3	3	3
Large Gear Teeth		pcs	89	89	89	89	89	89	89	89	89	89	89	89
Small Gear Teeth		pcs	20	20	20	20	20	20	20	20	20	20	20	20
Noise Level		dB(A)	94	94	94	94	94	94	≤90	≤90	≤90	≤88	≤88	≤88
Volumetric Eff.		%	88	88	90	90	90	90	≥91	≥92	≥93	≥93	≥93	≥94
Total Eff.		%	81	81	81	81	81	81	≥83	≥83	≥84	≥84	≥84	≥84
Dimensions		mm	2000×1200×900	2000×1200×900	2000×1200×900	2000×1200×900	2000×1200×900	2000×1200×900	1800×1200×900	1800×1200×900	1800×1200×900	1600×1200×900	1600×1200×900	1600×1200×900
Weight		kg	1350	1350	1350	1350	1350	1350	1250	1250	1250	1150	1150	1150
Motor Power	Motor model	/	YBKE3-280M-4	YBKE3-280M-4	YBKE3-280M-4	YBKE3-280S-4	YBKE3-280S-4	YBKE3-280S-4	YBK3-250M-4	YBK3-250M-4	YBK3-250M-4	YBK3-225S-4	YBK3-225S-4	YBK3-225S-4
	Rated power	kW	90	90	90	75	75	75	55	55	55	37	37	37
	Rated voltage	V	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140
	Rated speed	r/min	1485	1485	1485	1485	1485	1485	1480	1480	1480	1480	1480	1480
	Rated eff.	%	95.2	95.2	95.2	95.2	95.2	95.2	95.2	95.2	95.2	95.2	95.2	95.2
