JAC-K366DX Aluminum Oxide Flap Discs Manufacturer

JAC-K366DX Aluminum Oxide Flap Discs

Request a Quote

View All: http://indus-abrasives.com/1-1-1-1-aluminum-oxide-flap-discs.html

Availability

PRODUCT CODE	JAC-K366DX	JAC-K366DX	JAC-K366DX
ABRASIVE GRAINS	Calcined Alumina Oxide	Calcined Alumina Oxide	Calcined Alumina Oxide
FLAP DISC DENSITY	Standard	Standard	Standard
FLAP FITTED VERSIONS	Single / Double	Single / Double	Single / Double

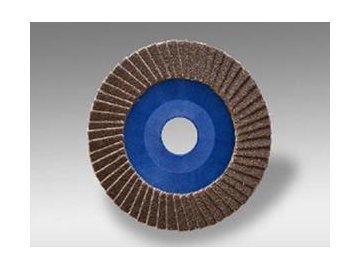

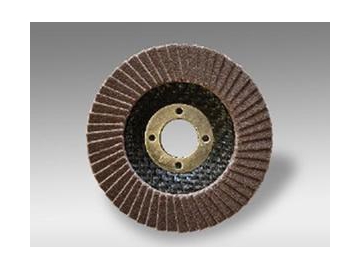

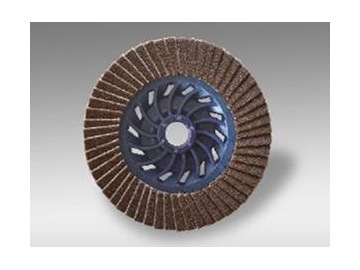

BACKING PLATE MATERIAL	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
FLAP DISC SHAPE AVAILABLE	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	36001	37569	36002	36730	37872	36731
		40			36014	37572	36015	36743	37885	36744
		50			36027	37585	36028	36756	37898	36757
		60			36030	37598	36031	36769	37901	36860
		80			36043	37601	36044	36872	37914	36873
		100			36056	37614	36057	36885	37927	36886
		120			36069	37627	36060	36898	37930	36899
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	36072	37730	36073	36901	37943	36902	37114		37115
		40			36085	37743	36086	36914	37956	36915	37127		37128
		50			36098	37756	36099	36927	37969	36928	37130		37131
		60			36101	37769	36102	36930	37972	36931	37143		37144
		80			36114	37772	36115	36943	37985	36944	37156		37157
		100			36127	37785	36128	36956	37998	36957	37169		37160
		120			36130	37798	36131	36969	38001	36960	37172		37173
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	36143	37801	36144	36972	38014	36973	37185		37186
		40			36156	37814	36157	36985	38027	36986	37198		37199
		50			36169	37827	36160	36998	38030	36999	37301		37302
		60			36172	37830	36173	37001	38043	37002	37314		37315
		80			36185	37843	36186	37014	38056	37015	37327		37328
		100			36198	37856	36199	37027	38069	37028	37330		37331
		120			36201	37869	36202	37030	38172	37031	37343		37344
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	36214		36215
		40			36227		36228
		50			36230		36231
		60			36243		36244
		80			36256		36257
		100			36269		36260
		120			36272		36273
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	36285		36286	37043		37044	37356		37357
		40			36298		36299	37056		37057	37369		37360
		50			36301		36302	37069		37060	37372		37373
		60			36314		36315	37072		37073	37385		37386
		80			36327		36328	37085		37086	37398		37399
		100			36430		36431	37098		37099	37401		37402
		120			36443		36444	37101		37102	37414		37415
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	36456		36457				37427		37428
		40			36469		36460				37430		37431
		50			36472		36473				37443		37444
		60			36485		36486				37456		37457
		80			36498		36499				37469		37460
		100			36501		36502				37472		37473
		120			36514		36515				37485		37486
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	36527		36528				37498		37499
		40			36530		36531				37501		37502
		50			36543		36544				37514		37515
		60			36556		36557				37527		37528
		80			36569		36560				37530		37531
		100			36572		36573				37543		37544
		120			36585		36586				37556		37557
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	36598		36599
		40			36601		36602
		50			36614		36615
		60			36627		36628
		80			36630		36631
		100			36643		36644
		120			36656		36657
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	36669		36660
		40			36672		36673
		50			36685		36686
		60			36698		36699
		80			36701		36702
		100			36714		36715
		120			36727		36728
