JAC-K367RX Aluminum Oxide Flap Discs Manufacturer

JAC-K367RX Aluminum Oxide Flap Discs

Request a Quote

View All: http://indus-abrasives.com/1-1-1-2-aluminum-oxide-flap-discs.html

Availability

PRODUCT CODE	JAC-K367RX	JAC-K367RX	JAC-K367RX
ABRASIVE GRAINS	Refined Aluminum Oxide	Refined Aluminum Oxide	Refined Aluminum Oxide
FLAP DISC DENSITY	Standard	Standard	Standard
FLAP FITTED VERSIONS	Single / Double	Single / Double	Single / Double

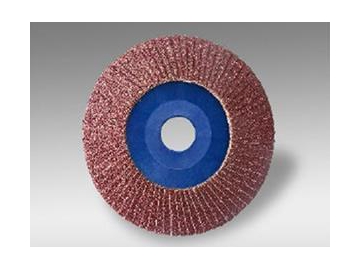

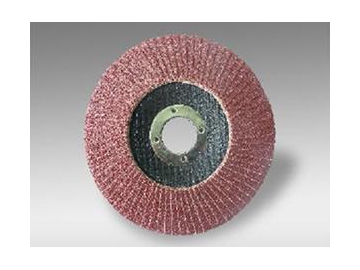

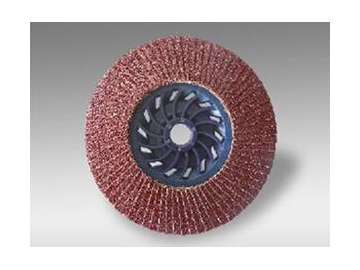

BACKING PLATE MATERIAL	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
FLAP DISC SHAPE AVAILABLE	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	37003	38561	37004	37732	38874	37733
		40			37016	38574	37017	37745	38887	37746
		50			37029	38587	37020	37758	38890	37759
		60			37032	38590	37033	37861	38903	37862
		80			37045	38603	37046	37874	38916	37875
		100			37058	38616	37059	37887	38929	37888
		120			37061	38629	37062	37890	38932	37891
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	37074	38732	37075	37903	38945	37904	38116		38117
		40			37087	38745	37088	37916	38958	37917	38129		38120
		50			37090	38758	37091	37929	38961	37920	38132		38133
		60			37103	38761	37104	37932	38974	37933	38145		38146
		80			37116	38774	37117	37945	38987	37946	38158		38159
		100			37129	38787	37120	37958	38990	37959	38161		38162
		120			37132	38790	37133	37961	39003	37962	38174		38175
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	37145	38803	37146	37974	39016	37975	38187		38188
		40			37158	38816	37159	37987	39029	37988	38290		38291
		50			37161	38829	37162	37990	39032	37991	38303		38304
		60			37174	38832	37175	38003	39045	38004	38316		38317
		80			37187	38845	37188	38016	39058	38017	38329		38320
		100			37190	38858	37191	38029	39161	38020	38332		38333
		120			37203	38861	37204	38032	39174	38033	38345		38346
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	37216		37217
		40			37229		37220
		50			37232		37233
		60			37245		37246
		80			37258		37259
		100			37261		37262
		120			37274		37275
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	37287		37288	38045		38046	38358		38359
		40			37290		37291	38058		38059	38361		38362
		50			37303		37304	38061		38062	38374		38375
		60			37316		37317	38074		38075	38387		38388
		80			37329		37420	38087		38088	38390		38391
		100			37432		37433	38090		38091	38403		38404
		120			37445		37446	38103		38104	38416		38417
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	37458		37459				38429		38420
		40			37461		37462				38432		38433
		50			37474		37475				38445		38446
		60			37487		37488				38458		38459
		80			37490		37491				38461		38462
		100			37503		37504				38474		38475
		120			37516		37517				38487		38488
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	37529		37520				38490		38491
		40			37532		37533				38503		38504
		50			37545		37546				38516		38517
		60			37558		37559				38529		38520
		80			37561		37562				38532		38533
		100			37574		37575				38545		38546
		120			37587		37588				38558		38559
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	37590		37591
		40			37603		37604
		50			37616		37617
		60			37629		37620
		80			37632		37633
		100			37645		37646
		120			37658		37659
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	37661		37662
		40			37674		37675
		50			37687		37688
		60			37690		37691
		80			37703		37704
		100			37716		37717
		120			37729		37720
