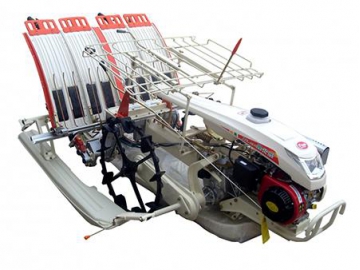

2Z-455 Walk Behind Rice Transplanter

Request a Quote

Website: http://farmers-equipment.com/1-1-1-3-2z-455-walk-behind-rice-transplanter.html

Characteristics

Strong power: 2.57 kW (3.5ps) gasoline engine of B&S Company is adopted.
Adjustable transplanting distance: The transplanting distance can be changed conveniently in the range of 117-223mm by adjusting the speed setting lever and the transplanting distance adjusting lever.
Consistent transplanting depth: Float-type hydraulic lifting mechanism and automatic balancing system makes the transplanting depth consistent;
Reliable seedling feeding: The rice transplanter is reliable with a unique seedling feed mechanism.
Night work available: With extra components, this transplanter can work at night and can be maintained conveniently.

Specifications

Structural type		Two wheels three floating plates type
Wheel structural type		Rubber tire needle driving wheel
Diameter of wheel (mm)		φ612
Work-part structural type		Crank rocker type/rotary type
Dimensions (L×W×H) (mm)		2410×1480×880
Total weight (kg)		175
Engine	Model	93400 type/EY20-3D type four-stroke gasoline engine
	Output power (kW)	3.5/3.6
	Output rpm (r/min)	3600
Shifting gear		Forward: two speeds Reverse: one speed
Capability	Productivity （hm2/h）	0.10-0.23
	Working speed (km/h)	1.08-3.49
	Traveling speed on road (km/h)	≤3.96
	Transplanting depth (mm)	0-46 (adjustable)
Planting density	Number of rows	4
	Row spacing (mm)	300
	Number of seedling	3-5 (adjustable)
	Number of hills (each 3.3m2)	45	50	60	70	80	90
	Transplating distance (seedling to seedling) (mm)	223	200	180	146	130	117
Seedling condition	Seedling type	Seedling with soil
	Height of seedling (mm)	100-250
	Leaf age (years)	2-4.5
