YCBS45 Shrink Film Packaging Machine Manufacturer

YCBS45 Shrink Film Packaging Machine

Request a Quote

View All: http://beverage-packline.com/1-1-1-4-45-shrink-wrapper-bundler.html

Application

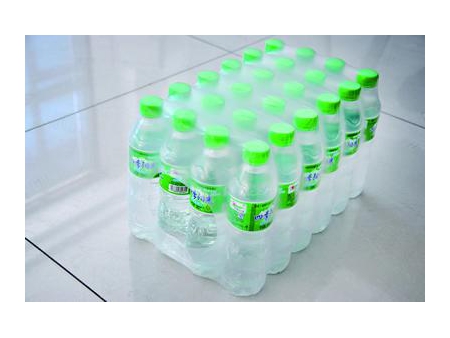

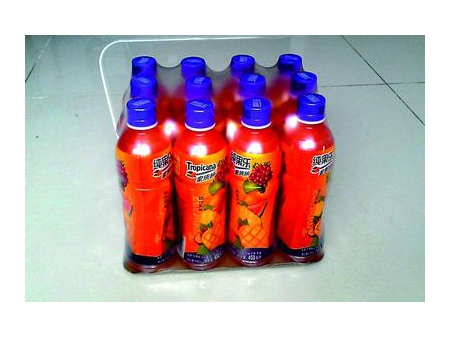

The YCBS45 shrink film packaging machine features a packaging speed of around 40 pcs/min. The packaging machine is used for shrink film packaging of beverages, fruit juices, bottled water, dairy products, condiments, etc.

Technical parameters

Equipment model	YCBS45
Machine dimension	L17685mm * W1530mm * H2500mm
Shrinkage tunnel dimension	L2500mm * W700mm * H450mm
Maximum package dimension	L460mm * W280mm * H345mm
Packing speed	40(pcs/min)
Conveyor belt width	610mm
Working voltage/power	3Phase 5Line 380V 65KW
Working pressure	0.6-0.8Mpa
Air consumption	80NL/min-100NL/min
Total weight	5200KG

Features

The YCBS45 shrink film packaging machine has a unique film unwinding device and constant tension film conveyor. The machine can perform instantaneous film cutting, automatic film overlapping and wrapping, and high strength shrink packaging.
With a unique "vibratory dividing unit" bottle separation method, it supports non-blocking and jam-free operation with smooth delivery.
A servo motor control system performs bottles or cans infeeding, film feeding, film cutting and film wrapping are precisely synchronized, stable and reliable.
Exclusive "ultrathin film conveying system", uses ultra-thin PE film, which is faster and more stable.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
