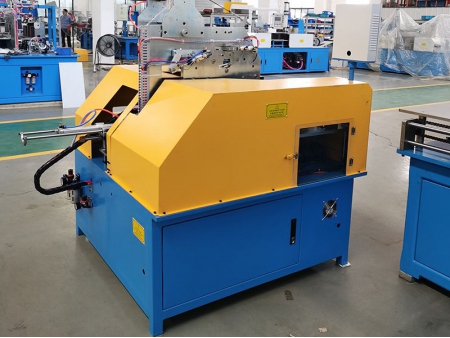

Microcomputer controlled packaging machine for reel-less cable coils

Enhanced Efficiency and Reliability with the Circinate Film Cable Coil Packaging Machine

At S&A, we present our cutting-edge circinate film cable coil packaging machine. This advanced cable coil packaging series supports multiple materials, including PVC, PE film, PP woven belt, or woven paper.

Features
  • User-Friendly Touch Panel Interface: Our packaging machine for reel-less cable coils is equipped with a convenient touch panel interface, making operation simple and efficient.
  • Motor-Driven Coil-Holding Arms: Experience smooth rotation and effortless handling of coils with the motor-driven coil-holding arms.
  • Automatic Labeling Support: Enjoy the convenience of automatic labeling. Adjust the size of the coil-holding arms effortlessly to accommodate different coil sizes.
  • PLC Control: The PLC technology ensures stable operation and allows the storage of up to 99 different packing specifications for easy selection and preparation.
Specifications
Model Height (mm) Outer Diameter (mm) Inner Diameter (mm) Weight (kg) Packing Material Width (mm) Thickness (mm)
P70
30-70 200-360 140 25 PVC, PE 45 0.04-0.07
P100
50-100 220-460 150 35 PVC, PE 45 0.04-0.07
P120
70-120 220-460 160 40 PVC, PE 55 0.04-0.07
P140
70-140 300-600 180 100 PVC, PE, PP 55 0.04-0.07
P180
90-180 320-600 200 150 PVC, PE, PP, Woven belt 75 0.04-0.07
P210
100-210 400-800 250 200 PVC, PE, PP Woven belt 75 0.04-0.07
