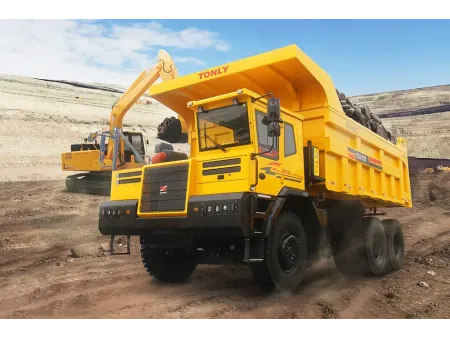

Diesel Off-Road Dump Truck
Rigid haul truck with 4WD 7-speed manual transmission
Key Parameters
- Engine power 430-460HP
- Rated payload 60t
- Dump body capacity 30-54m³
Applications
Transportation in large and medium-sized open pit mines and quarries
| Model | ||||||
| Kerb weight (t) | 30 | |||||
| Rated payload (t) | 60 | |||||
| Engine power (HP) | 460 | 430 | ||||
| Transmission | 7-speed manual transmission | |||||
| Axle load (t) | 20 35 35 | |||||
| Cab | Single-sided rigid cab | Single-sided rigid cab (right hand drive) | Single-sided rigid cab | Single-sided rigid cab (right hand drive) | Single-sided rigid cab | Single-sided rigid cab (right hand drive) |
| Suspension system | Leaf spring suspension | |||||
| Steering system | Mechanical dual steering | |||||
| Tire | 14.00-25 | |||||
| Dump body capacity (m³) | 30 | 54 | ||||
| Max. speed (km/h) | 40 | |||||
| Drive mode | 6×4 | |||||
- Our 60-ton off-road dump trucks use newly designed front and rear suspension systems, heavy-duty engineering axles, and reinforced engineering-specific tires, offering high load capacity.
- Our trucks are equipped with engines, transmissions, and large-ratio drive axles specifically designed for off-road conditions, presenting powerful performance and excellent grade ability.
- Tonly Heavy Industries’ core technology is adopted in the dump trucks for optimized whole-machine design, achieving over 95% uptime and higher overall efficiency.

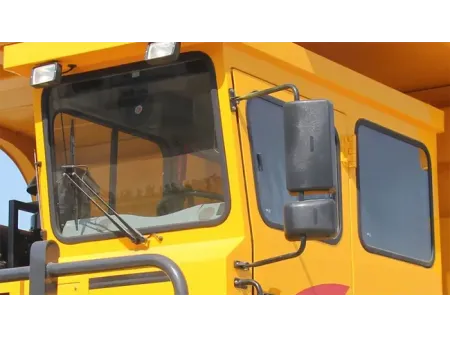

Rigid frame structure is featured with excellent resistance to rolling, falling and collision; the rear door is opened backwards, allowing the operator to escape the cab quickly in case of accidents; the front windshield is forward-tilted to provide a better view and effectively prevent falling objects from smashing the glass and causing damage to the operator.
The specially designed double steering gear system has high steering accuracy, good ride performance and high reliability.
Non-road mining engine is professionally adjusted to adapt to off-road conditions, with strong power, low fuel consumption and high reliability.
The mining transmission, with single box and dual intermediate shaft, jointly developed by Tonly and FAST, is equipped with a forced lubrication device, presenting strong torque transmission capacity and high reliability. The optional integrated hydraulic retarder can reduce the consumption of brake shoes and improve the safety of the vehicle.
The bolted chassis frame for wide body vehicle is made of high-strength steel plate by multiple times of rolling, featuring high bearing capacity, strong impact resistance and long service life.
The integrally framed dump body is made of high-strength and wear-resistant steel plates, with strong resistance to impact and deformation, good wear resistance and long service life.
OTR tire is specifically used for different working conditions, with good adaptability, flexibility, and long service life.
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.

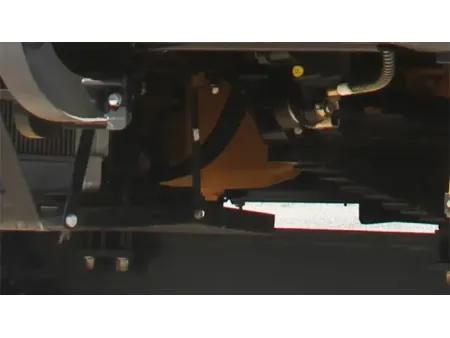

The sliding-type front suspension with twin shock absorber demonstrates higher bearing capacity, good buffer performance, and high reliability. The leaf spring balance rear suspension is equipped with dual V-shaped track bar guiding mechanism, delivering high bearing capacity and excellent stability.
-
Cobalt and Copper Mine in DRC (Democratic Republic of the Congo)
- Location: Kolwezi, Lualaba
- Annual extraction volume: 50 million tons.
- Site conditions
Heavy-load uphill with the longest slope distance of 2 km.
Environmental factors: a rainy season lasting 5-6 months each year. - Recommendations: TL875D
-
Jindui Molybdenum Mine
- Location: southern slope of Mount Hua, eastern section of the Qinling Mountains, China
- Annual extraction volume: 12 million tons
- Site conditions
Heavy-load uphill with a transport distance of 2.5 km. - Recommendations: TL875E
-
Yulong Copper Mine in Xizang
- Location: Jiangda County, Chamdo, Xizang Autonomous Region, China
- Annual extraction volume: 40 million tons.
- Site conditions
Heavy-load uphill and downhill with a transport distance of 3 km.
Environmental factors: high altitude, cold climate, and frozen earth. - Recommendations: TL875, TL875B, TL875K, TLD125
-
Thar Desert Coal Mine in Pakistan
- The Thar coal mine is the largest discovered coal field so far, with coal reserves of 175 billion tons.
- Site conditions
The coal mine is located in the Thar Desert, with surface temperatures exceeding 60°C year-round, featuring loose surfaces and heavy dust, typical desert conditions. - Recommendations: TL875
