Electric Dump Truck

Request a Quote

Website: http://heavytrucks-en.com/4-2-electric-dump-truck.html

ELECTRIC TRUCKS

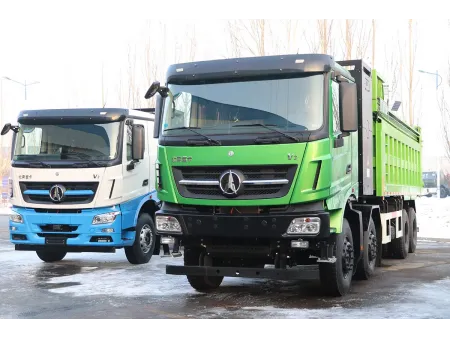

This electric dump truck features an 8×4 drivetrain and a powerful 620HP electric motor, paired with a high-capacity 450kWh battery system. It delivers a full-load range of up to 250 km, making it ideal for heavy-duty transport across diverse terrains. Equipped with dual 13-ton drive axles and a differential lock, it ensures reliable performance in demanding conditions. Designed for construction projects, municipal sanitation, mining operations, and port handling, this EV truck offers efficient, low-emission transport with fast-charging capability.

Motor power 620 HP

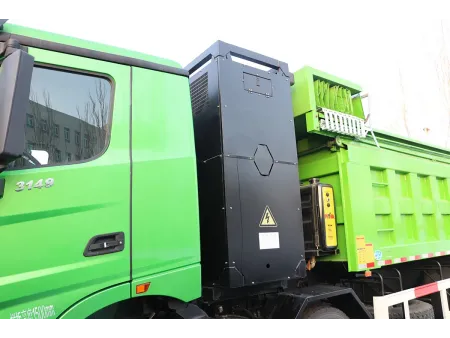

Battery capacity 450 kWh
Driving range 250 km (fully loaded)
Fast charging time Approx. 30 minutes (dual-gun fast charging)

Dimensional Drawing

Specifications

Model	3162K
Driving Type	8×4
Cab	Cab Exterior Highway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab Interior Air-sprung suspension driver's seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments.
Drive Motor	Max. Power: 620 HP
Transmission	Gears: 4 speed forward / 5.53-1 Transfer Box: not available Power take-off (P.T.O.): optional
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Power	450kWh
Endurance Mileage	250km (full load)
Charging Time	Double gun 30min.
Front Axle	7500kg 7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 10 /10pcs / Rear 12pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: ABS
Electrical Equipment	Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 21% Final Drive Ratio: 5.921
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Dumper Cargo Box	Size: 5800×2300×1500mm, front lifting system
Dimensions	Wheel Base (WB): 1950 3100 1450mm Overall Length (OL): 9800mm Overall Width (OW): 2550mm Overall Height (OH): 3550m Front Overhang (FOH): 1515mm Rear Overhang (ROH): 625mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm
Total Vehicle Weight	16500kg

*The above data is subject to the actual product.
