Automatic Food Forming Machine
This product has been discontinued and removed from our shelves.
Hiwell Machinery AMF600-III automatic food forming machine can be utilized as stand-alone food production equipment covering functions of filling, forming and conveying, etc. This stainless steel food processing system also can be compatible with battering machine, flouring machine, frying machine, steaming machine, instant freezer and packaging machine, thus forming fully automatic food processing line.
This automatic food forming machine has been exported to Netherlands, Germany, Malaysia, Thailand, Philippines, Argentina and Brazil, etc. Moreover, this meat ball forming machine is allowed to be tailored to fit your special requirements.
Advantages
1. Our automatic food forming machine is practically designed to process meat, poultry, fish, potato and other vegetables, etc.
2. This chicken nugget forming equipment delivers exceptional processing capacity which reaches 1000kg per hour.
3. Thanks to fast and easy change of products being processed, our vegetable burger production line actively reduces your operation cost.
4. The entire fish nugget forming machine is made from stainless steel and non-metallic materials, thus meeting HACCP standards on food safety and reliability.
5. Impressive transport efficiency is resulted from rolling wheels and supports.

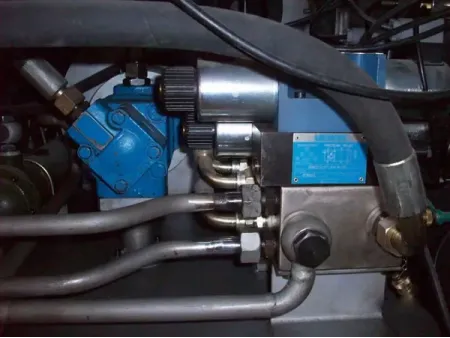

1. Hydraulic Section
The hydraulic section on our automatic food forming machine involves the utilization of high-end components supplied by Rexroth, HYDAC, Stauff, Parker Dension, Parker and Internormen, etc.

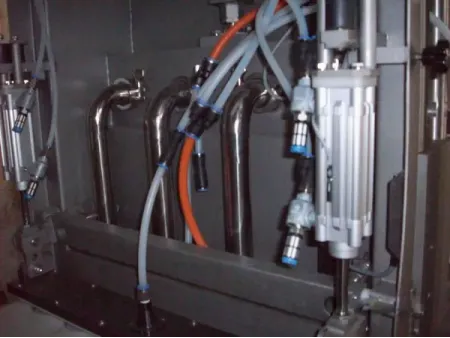

2. Pneumatic Section
All of components in pneumatic section are supplied by Festo.
3. Electrical System

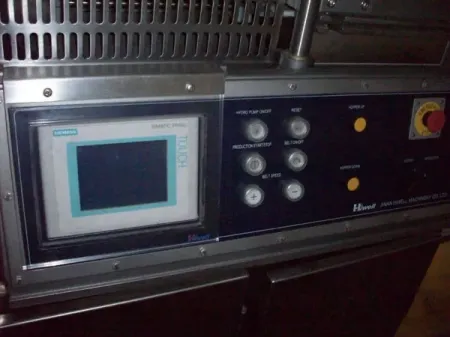

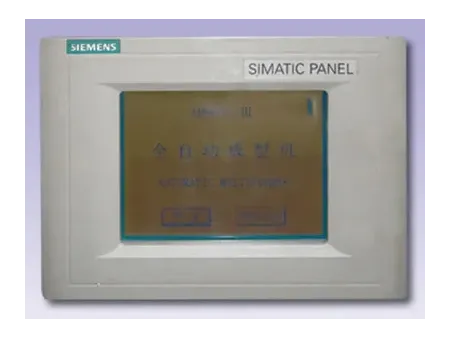

Siemens PLC system is incorporating with touch screen for intuitive operation. Chinese and English operation systems are available with automatic alarm system. The contactor in our automatic food forming machine is purchased from Siemens and Phoenix Contact. The relay is introduced from Omron.
The entire electrical system is water proof and meets ENEC (European Norms Electrical Certification) standards. In order for ultimate safety, we use magnetic switch, air to electric converter, as well as electrical and pneumatic door interlock mechanism.
Technical Parameters| Belt Width | 600mm |
| Air Pressure/Water Pressure | 6 bar/2 bar |
| Power | 15.12kW |
| Capacity | About 500-1000kg/h |
| Production Cycle | 15-60 times/min |
| Product Thickness | 6-40mm |
| Weight Tolerance | ≤1% |
| Max. Product Diameter | 150mm (Hamburger) |
| Filling Pressure | 3-15MPa |
| Overall Dimension | 3170×1176×2636mm |
Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our automatic food forming machine is 1 year, excluding belt, cylinder and touch screen. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
