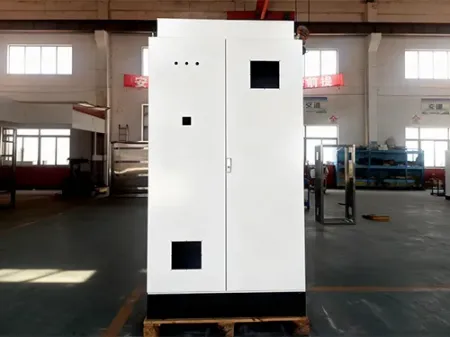

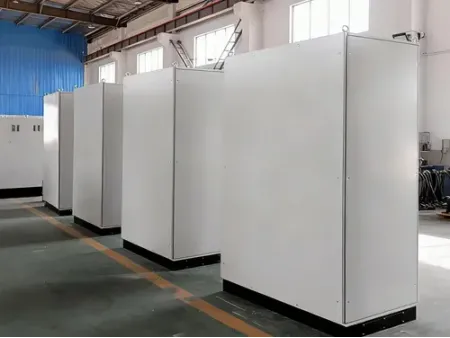

Control Panel Enclosure (5-Fold Steel Profile)

Control Panel Enclosure (5-Fold Steel Profile)
Control Panel Enclosure (5-Fold Steel Profile)
Control Panel Enclosure (5-Fold Steel Profile)
Request a Quote
Website:

Electrical Enclosures

CBES Series

Certification: CE, ISO, IP65, Corrosion Resistance Certification, ARH

Features
  • The mounting plate is made of 2.5 mm galvanized steel, featuring 20 mm U-shaped folded edges on both sides to enhance rigidity and ease of handling.
  • The mounting plate is fitted with plastic sliders, allowing front insertion along the guide rails for quick installation. The back panel uses a screw-fixed structure for convenient mounting and removal, and can be designed with front and rear door access if required.
  • The inner side of the door includes a galvanized square-tube reinforcement to increase strength and support mounting strips for electrical components.
  • The door adopts a polyurethane foamed sealing gasket combined with a waterproof edge design, effectively preventing moisture and dust from entering the cabinet to maintain rated protection levels.
  • The cabinet door uses load-bearing hinges and a three-point latch system (top, middle, bottom) with interchangeable left or right opening options, offering a 130° opening angle.
  • The bottom of the cabinet includes three interchangeable cable entry plates, allowing easy relocation and cable routing. A standard modular hole pattern simplifies the installation of accessories and internal components.
  • The interior is equipped with a lighting lamp, document pocket, fan, and filter, ensuring organized document storage and effective cabinet ventilation.
  • The cabinet includes mounting beams (uprights) and door installation strips for flexible component mounting. Optional configurations include dual mounting plates and fixed or movable bases, offering greater installation flexibility.
Applications

Widely used across multiple industries, including but not limited to:

  • Industrial Manufacturing: Suitable for production line control and equipment management in the automotive, machinery, and electronics industries.
  • Construction Industry: Applied in building automation control systems and elevator control systems.
  • Energy Industry: Used in power systems, water treatment facilities, and petrochemical control and management applications.
Specifications
Model Dimensions (mm) Model Dimensions (mm)
H W D H W D
CBES 10060 30 1000 600 300 CBES 18080 30 1800 800 300
CBES 10060 40 1000 600 400 CBES 18080 40 1800 800 400
CBES 10080 30 1000 800 300 CBES 18080 50 1800 800 500
CBES 10080 40 1000 800 400 CBES 18080 60 1800 800 600
CBES 12080 30 1200 800 300 CBES 180100 40 1800 1000 400
CBES 12080 40 1200 800 400 CBES 180100 50 1800 1000 500
CBES 120100 30 1200 1000 300 CBES 180100 60 1800 100 600
CBES 120100 40 1200 1000 400 CBES 180100 80 1800 1000 800
CBES 120120 30 1200 1200 300 CBES 180120 40 1800 1200 400
CBES 120120 40 1200 1200 400 CBES 180120 50 1800 1200 500
CBES 14060 30 1400 600 300 CBES 180120 60 1800 1200 600
CBES 14060 40 1400 600 400 CBES 180120 80 1800 1200 800
CBES 14080 30 1400 800 300 CBES 20060 30 2000 600 300
CBES 14080 40 1400 800 400 CBES 20060 40 2000 600 400
CBES 140100 30 1400 1000 300 CBES 20060 50 2000 600 500
CBES 140100 40 1400 1000 400 CBES 20060 60 2000 600 600
CBES 140120 30 1400 1200 300 CBES 20080 30 2000 800 300
CBES 140120 40 1400 1200 400 CBES 20080 40 2000 800 400
CBES 16060 30 1600 600 300 CBES 20080 50 2000 800 500
CBES 16060 40 1600 600 400 CBES 20080 60 2000 800 600
CBES 16080 30 1600 800 300 CBES 20080 80 2000 800 800
CBES 16080 40 1600 800 400 CBES 200100 30 2000 1000 300
CBES 160100 30 1600 1000 300 CBES 200100 40 2000 1000 400
CBES 160100 40 1600 1000 400 CBES 200100 50 2000 1000 500
CBES 160120 30 1600 1200 300 CBES 200100 60 2000 100 600
CBES 160120 40 1600 1200 400 CBES 200100 80 2000 1000 800
CBES 18060 30 1800 600 300 CBES 200120 40 2000 1200 400
CBES 18060 40 1800 600 400 CBES 200120 50 2000 1200 500
CBES 18060 50 1800 600 500 CBES 200120 60 2000 1200 600
CBES 18060 60 1800 600 600 CBES 200120 80 2000 1200 800

The above dimensions are standard reference sizes. For non-standard or custom cabinet requirements, manufacturing can be tailored according to customer specifications.

Standard Configuration
  • One galvanized mounting plate
  • Two door mounting strips
  • One document pocket
  • Two mounting vertical beams
  • Single front door with rear panel
  • Surface treatment: phosphating and powder coating, color RAL7032/RAL7035 (computer gray/white)
  • Material: carbon steel Q235 (optional stainless steel)
  • Door thickness: 2.0 mm
  • Cabinet body thickness: 1.5 mm
  • Galvanized mounting plate thickness: 2.5 mm
  • Protection level: IP56
  • Material option: stainless steel available
Limit Switch
Mounting Vertical Beams
Document Pocket
Door Grounding Wire

Yes. The interior is designed with modular mounting holes, and the arrangement of vertical beams, uprights, and crossbeams provides clear routing paths and modular openings that make equipment installation convenient.

The door can typically open up to 130 degrees, allowing easy operation and maintenance of internal equipment.

Available materials include carbon steel and stainless steel. Carbon steel cabinets are powder-coated after phosphating pretreatment, while stainless steel cabinets feature a brushed finish.

Yes. Custom options include different door-opening styles, dimensions, and internal configurations, such as double-layer doors or outer doors with tempered glass windows.
