Industrial Dough Mixer
As an indispensable unit in our biscuit production line, the industrial dough mixer, also called a pastry blender or dough mixing machine is used to stir a mixture of flour, water, sugar and palm oil to form stretchy dough. It is multifunctional food equipment, ideal for blending the dough for all kinds of biscuits.
This kind of food processing machinery is one of our highly popular biscuit machines, constructed from stainless steels, driven by an electric motor and characterized by simple structure and easy operation. This dough mixer consists of a variety of individual machines such as double paddle and double speed vertical mixer or horizontal mixer, tilting machine, elevating conveyor, and dough sheeter.
Evergrowing Machinery is a specialized food machinery maker from China. Whether you need a complete food production line or single piece of food equipment, you can find the best answer here. The industrial dough mixer is what we supply for our biscuit production line or your present line.
Categories of the Dough Mixer

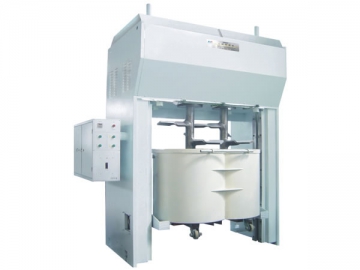

The vertical dough mixer comes with two paddles and two speeds. Varying speed is conducive to improving flour blending. A high speed of 25RPM is ideal for tough dough, and low speed of 16RPM for soft dough.
| Items | Specifications |
| Power supply | 3-380V, AC |
| Power | 32kW 2.2kW |
| Capacity | 300kg flour once for 500kg dough |
| Floor load requirement | 1200kg/m2 |
| Mixing speed (double) | Hard biscuit 25RPM, soft biscuit 16RPM |
| Electrical device brands | Schneider, Siemens, Omron |
| Mixer type | double blade, knife type |
- Large Horizontal Mixer
- Double Horizontal Mixer

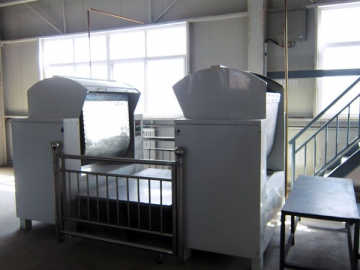

The horizontal dough mixer is specially designed for soft biscuits and cookies. It features frequency control, soft start, and PLC touch screen control. The mixing capacity is 650kg/time.
Technical Parameters
| Items | Specifications |
| Motor power | 7.5kW 1.5kW |
| Mixing capacity | 150kg flour/time (250kg dough) |
| Mixer type | ∽ type |
| Mixing speed | 30RPM |
| Tub material | Stainless steel |
- Bucket Tilting Machine
- Skip Bucket Elevator

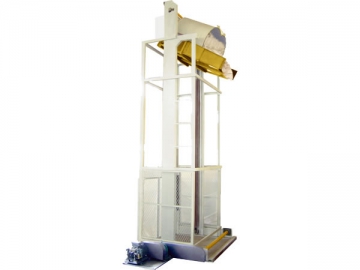

If the tough mixing workshop is placed at the same floor with the biscuit production line, the skip bucket elevator can lift mixed or fermented dough to a needed height and drop it into the laminator or feeder. When the bucket is lifted to the required height, it will push forward a certain distance and then dump the dough.
Technical Parameters
| Items | Specifications |
| Motor power | 2.2kW |
| Lifting weight | 1500kg |
| Hydraulic system | Taiwan Pulian |
| Brand of electrical device | French Schneider |
Dough Slicing Slope Conveying
The dough slicing machine is driven by a pneumatic motor. It comes with a stainless steel trough. When the dough mixer is at the same level with the biscuit machine, the dough slicing machine can be used to slice mixed dough and then convey it to the next process.
