Request a Quote

Self-Adhesive Labeling Machines

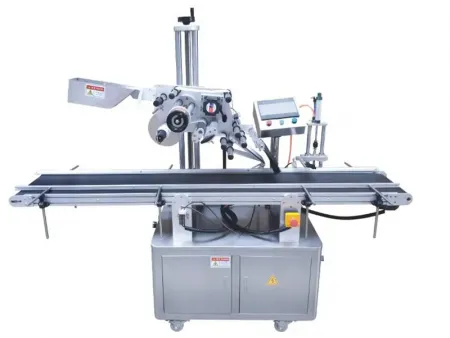

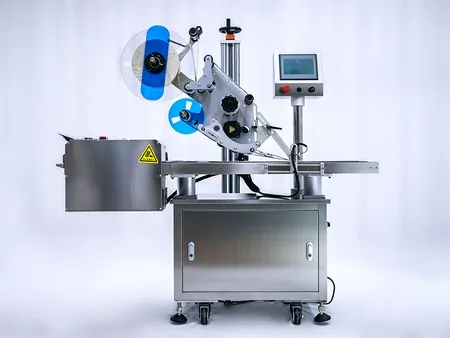

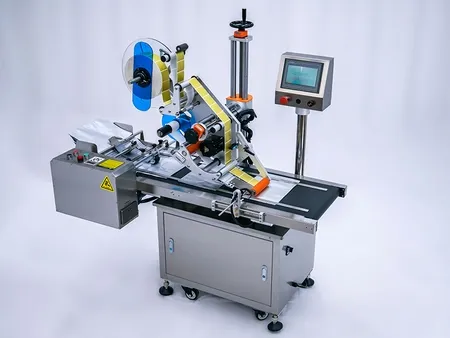

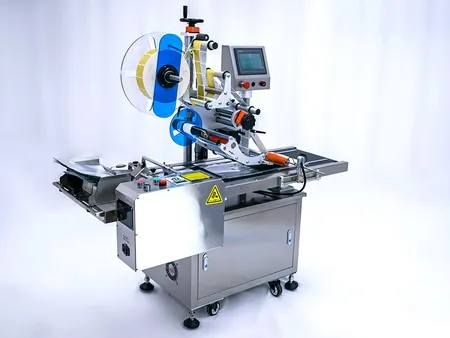

Automatic top labeling machine for applying self-adhesive labels on flat products

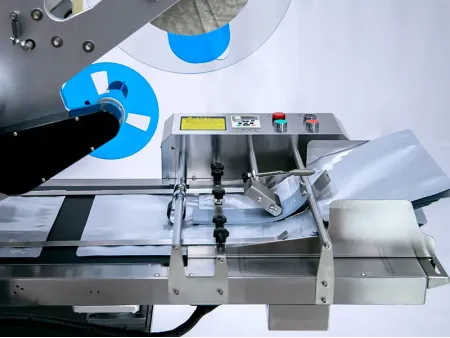

This flat surface labeling machine is designed to keep your production process smooth and accurate! With its vacuum conveyor belt, your materials stay securely in place during transport, eliminating any risk of shifting. You can easily print serial numbers, dates, times, or fixed data in real-time, and there’s even an option for automatic label replacement to handle your unique production needs. Whether you’re running a standard production line or have special requirements, this labeler is built to adapt. Contact us to discuss how it can bring more stability and efficiency to your operations!

  • Labeling Speed

    20 to 200 Products Per Minute

  • Machine Dimensions (L×W×H)

    2000×650×1600mm

Details
Specifications
  • Machine Dimensions (L×W×H)2000×650×1600mm
  • Conveyor Belt Height From Ground780mm
  • Conveyor Belt Width300mm
  • Labeling Speed20-200pcs/min (depending on bottle diameter and label length)
  • Applicable Product Height30-200mm
  • Label Height Range20-135mm
  • Label Length Range20-300mm
  • Labeling Accuracy±1mm (excluding package and label errors)
  • Inner Diameter of Label Roll40mm/76mm
  • Outer Diameter of Label Roll< 360mm
  • Power Supply220V 50/60HZ 1.5kW
  • Machine Weight180kg
Applications
  • Industries and Applications: This labeler is mainly designed for labeling stacked flat packaging materials across various industries, including pharmaceuticals, food, electronics, and printing. It works perfectly with items such as cartons, boxes, flat boxes, cardboard sheets, and cards.
  • Specialized Labeling: Our flat surface labeling machine is especially ideal for applying labels on unopened packaging boxes, such as anti-counterfeit labels, logistics information labels, and electronic supervision code labels.
Features
  • Dual-Stage Clutch Design: Ensures more stable label tension, improving labeling accuracy.
  • Belt Conveyor: Suitable for flat labeling of various products. Optional product clamping or labeling molds can be added for even higher precision.

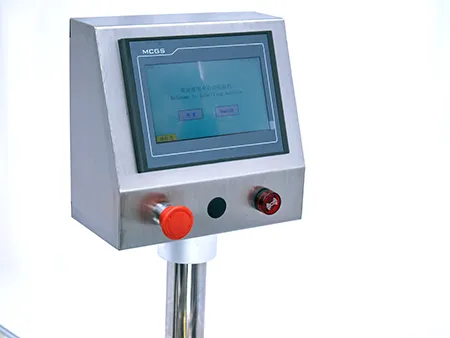

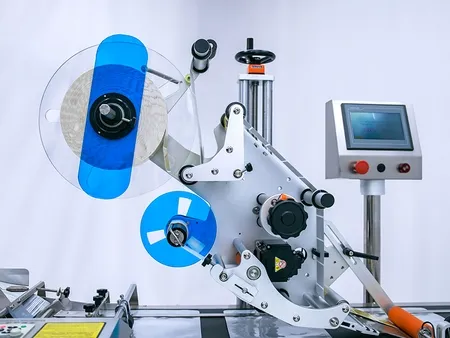

  • Imported Servo Motor: Drives the label dispenser for consistent speed and accuracy. The user-friendly touch screen can store up to 50 labeling parameters and features intuitive operation with extensive online help functionality.
  • Premium Electrical Components: Equipped with internationally recognized brand electrical parts, and all materials comply with GMP standards, ensuring long-term stability and reliability.

Configurations
  • Optional Printing Equipment: Compatible with Zebra PAX, 105SL print engines, and various leading brands of coding and printing systems.
  • Missed Print Detection and Rejection: Optional device to ensure the accuracy of printed content by detecting and rejecting incomplete or missing prints.

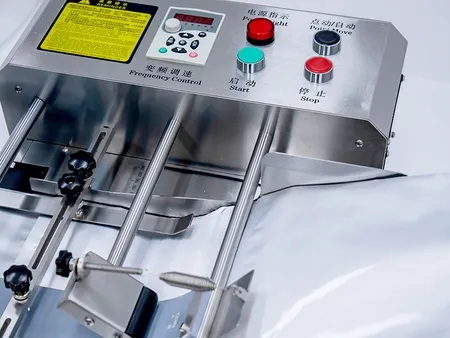

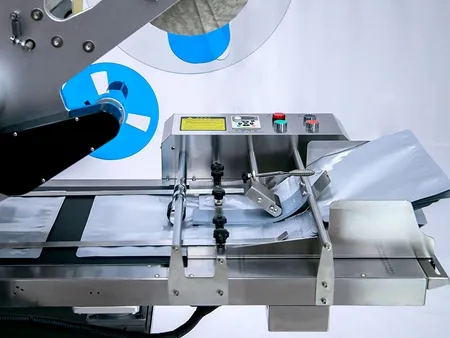

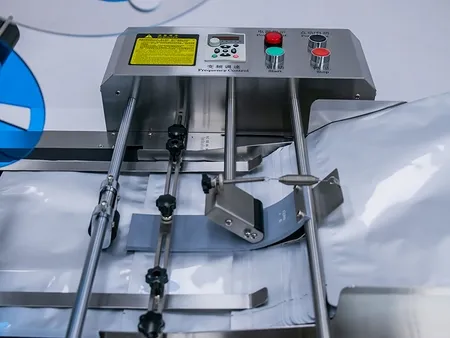

  • Automatic separation: Optional configuration for smooth product separation and feeding.
Videos
Flat Surface Labeling Machine

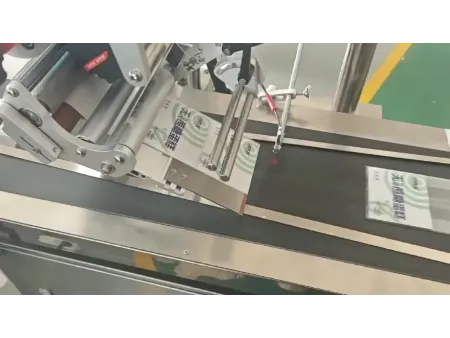

Top Labeling Machine

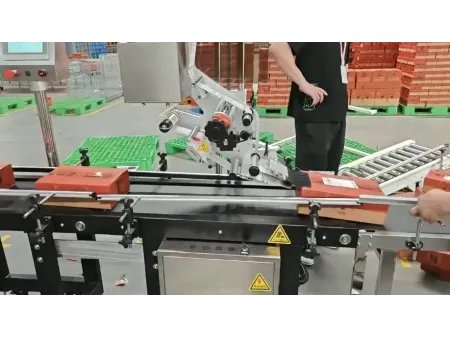

Carton Labeling Machine for Three Squirrels Snack Food Company

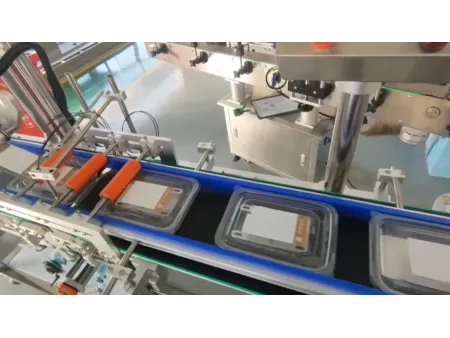

Flat Surface Labeling Machine for Plastic Cream Jars
