MEMS 1xN Polarization Maintaining (PM) Optical Switch
Request a Quote
Cylindrical (1×2 to 1×8)
This MEMS 1xN PM optical switch is an optical path control device with small cylindrical package. Based on Micro-Electro-Mechanical System (MEMS) technology, these MEMS fiber optic switches are provided with port configurations ranging from 1×2 to 1×8, allowing for channel selection between a single input fiber and up to N output fibers. The optical path is controlled by rotating the MEMS mirror, enabling the optical switch to transmit, redirect and block optical signals with desired paths.
With features of compact size, low power consumption and high reliability, these polarization maintaining optical switches are extensively employed in optical fiber communication systems and fiber optic sensors.
Features
- Cylindrical package, compact size
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
Applications
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration

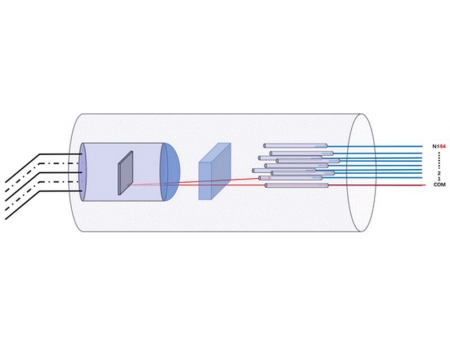

Schematic Diagram
Optical Specifications
PARAMETER | UNIT | VALUE | |
Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
Insertion Loss | 1 x 2 | dB | ≤ 1.0, typical 0.8 |
1 x 4 | ≤ 1.2, typical 0.9 | ||
1 x 8 | ≤ 1.4, typical 1.1 | ||
Return Loss | dB | ≥ 45 | |
Repeatability | dB | ≤ 0.1 | |
Crosstalk | dB | ≥ 40 | |
PDL | dB | ≤ 0.2 | |
WDL | dB | ≤ 0.3 | |
TDL | dB | ≤ 0.3 | |
Extinction Ratio | N ≤ 4 | dB | ≥ 18 |
4 < N ≤ 8 | ≥ 16 | ||
Switch Time | ms | ≤ 5 | |
Durability | cycle | ≥ 1 x 109 | |
Maximum Optical Power | mW | ≤ 500 | |
Latching Type | Non-latching |
