MEMS 1xN Multimode Optical Switch
Request a Quote
Module4 (1×2 to 1×32)
Introducing the Module4 MEMS 1xN multimode optical switch, a device for optical communication and fiber sensing applications. This optical switch is based on the Micro-Electro-Mechanical System (MEMS) technology, and provides channel selection capabilities between a single input fiber and up to 32 output fibers. Its modular design and versatile port configurations ranging from 1×2 to 1×32 make it a versatile solution for various optical network needs.
Features
- Proven MEMS durability and reliability
- Compact form factor
- Fast switching time
- Qualified to Telcordia GR-1073-CORE and RoHS requirements
Applications
- Fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Fiber sensing
- Resource sharing
- Optical network protection and restoration

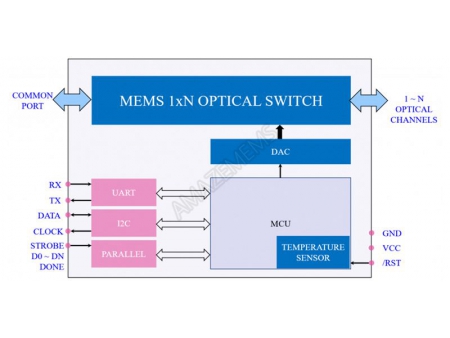

Schematic Diagram
Optical Specifications
PARAMETER | UNIT | VALUE | |
Wavelength | nm | 8:850 only 9:980 only 13:1290 ~ 1330 15:1525 ~ 1568 | |
Test Wavelength | nm | 850 / 980 / 1310 / 1550 | |
Insertion Loss | 1 x 8 | dB | ≤ 1.0, typical 0.6 |
1 x 16 | ≤ 1.2, typical 0.8 | ||
1 x 24 | ≤ 1.4, typical 1.0 | ||
1 x 32 / 48 / 64 | ≤ 2.2, typical 1.4 | ||
1 x 128 | ≤ 2.4, typical 1.6 | ||
1 x 256 | ≤ 2.6, typical 1.8 | ||
1 x 576 | ≤ 2.8, typical 2.0 | ||
Return Loss | dB | ≥ 45 | |
Repeatability | dB | ≤ 0.1 | |
Crosstalk | dB | ≥ 40 | |
PDL | 2 ≤ N ≤ 24 | dB | ≤ 0.2 |
24 < N ≤ 576 | ≤ 0.4 | ||
WDL | 2 ≤ N ≤ 24 | dB | ≤ 0.4 |
24 < N ≤ 576 | ≤ 0.8 | ||
TDL | 2 ≤ N ≤ 24 | dB | ≤ 0.3 |
24 < N ≤ 576 | ≤ 0.6 | ||
Switch Time | 2 ≤ N ≤ 16 | ms | ≤ 5 |
16 < N ≤ 24 | ≤ 10 | ||
24 < N ≤ 576 | ≤ 20 | ||
Durability | cycle | ≥ 1 x 109 | |
Maximum Optical Power | mW | ≤ 500 | |
Latching Type | Non-latching |
