Monoslide Classic Diamond Manufacturer

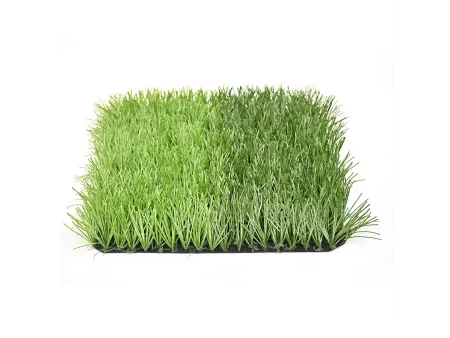

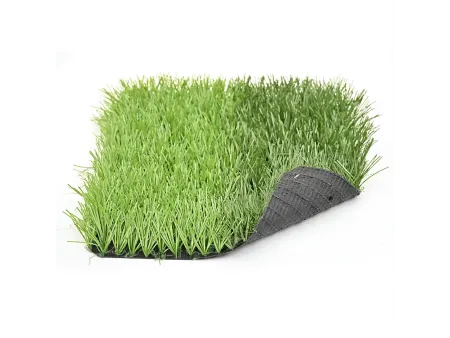

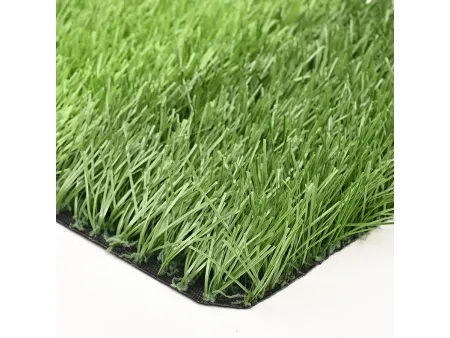

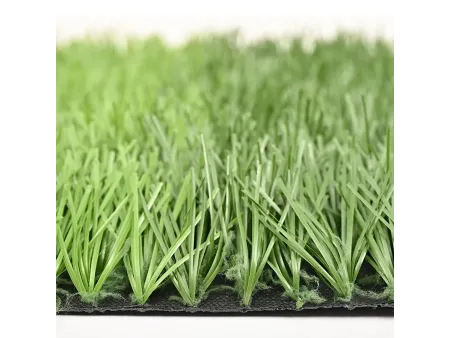

Monoslide Classic Diamond

Request a Quote

View All: http://artificialturfchina.com/1-1-1-multi-purpose-artificial-turf-msd.html

Multi-Purpose Artificial Turf

Features

Made with high-quality fibers from TenCate in the Netherlands, featuring a classic diamond-shaped structure for enhanced durability and wear resistance
Treated with anti-static additives to minimize infill loss, ensuring a cleaner and more consistent surface
Designed with excellent skin-friendliness and high flexibility, maximizing user comfort
Certified under the EU RoHS directive, free from harmful heavy metals and other toxic substances
Includes metallocene polyethylene in the fibers, enhancing strength, abrasion resistance, and tear resistance
Simple and convenient maintenance: keep the surface clean, reduce sweeping frequency (especially in high temperatures), and control usage for extended turf life

Product Overview

Ideal for: Middle and primary school sports fields, standard football fields, and gymnasiums.

The monoslide classic diamond is a tailored solution for versatile sports environments. Using advanced diamond-shaped fibers, this type of artificial turf excels in both durability and user comfort, making it an ideal choice for areas with high foot traffic like school sports fields and community football grounds. The artificial turf's exceptional resistance to UV rays and wear ensures it maintains its quality and appearance over time, even under constant use. Additionally, its compliance with EU RoHS standards highlights our commitment to safety and sustainability, offering an ideal solution to institutions that prioritize health and environmental responsibility.

Main Parameters

Pile Height

Density (DTEX)

6100

Backing

UV resistant double PP NET

Latex Type

Styrene-butadiene (SBR) latex

Yarn Color Options

Field Green lime green, combined field green and lime green

Yarn
Yarn type	Monofilament
Yarn material	PE (polyethylene)
Pile height	50 mm
Yarn width	1.4 mm ±5%
Yarn thickness	205 μm ±5%
Dtex	6100
Density	10710 stitches
Gauge	5/8
Stitch rate	17 stitches
Yarn Color Options	Field green lime green, combined field & lime green
Backing	UV resistant double PP NET

Finished Product
Recommended roll width	4 m
Total weight	2100 g/m²
Product weight (100m² per roll)	230 kg
Packaging material	Waterproof PP film

Latex
Latex type	SBR latex
Latex weight	1100 g/m²

Silica Sand
Sand size	0.35-0.85 mm
Mesh size	30-50 mesh
Color	Beige, white

Infill Granules (Optional)

SBR Granules
SBR granules are designed to closely mimic the properties of natural rubber but with enhanced features like better abrasion resistance, heat tolerance, and longevity. These granules not only excel in performance but also offer a quicker vulcanization process, making them ideal for diverse applications. Whether for sports fields or other demanding environments, SBR granules provide reliable durability and are a popular choice for projects requiring high-performance materials.
EPDM Granules
EPDM granules are known for their low density, making them an excellent choice as a lightweight infill material. Their outstanding shock absorption and compression resistance properties make them ideal for artificial turf systems where safety is a priority. These granules are suitable for environments where the cushioning and safety of the playing surface are critical.
Thermoplastic Elastomer (TPE) Granules
TPE granules offer a reliable combination of durability and flexibility, making them a strong choice for artificial turf systems under heavy use. These granules are non-toxic and environmentally friendly, with a broad range of hardness levels available. Their soft texture and excellent resistance to weather, fatigue, and temperature changes contribute to a longer turf lifespan while maintaining a safe and comfortable surface.
