Touchless Car Wash Machine - Double Arms Manufacturer

Touchless Car Wash Machine - Double Arms

Request a Quote

View All: http://carwash-system.com/1-1-1-touchless-car-wash-machine.html

HP-280

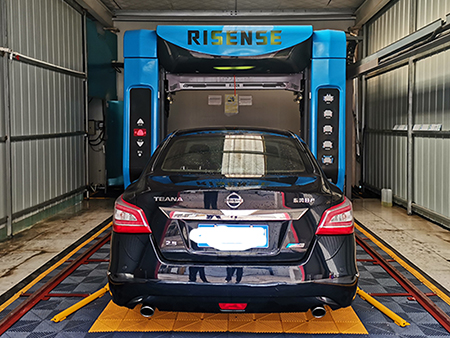

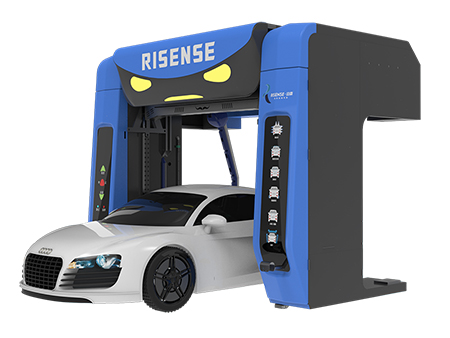

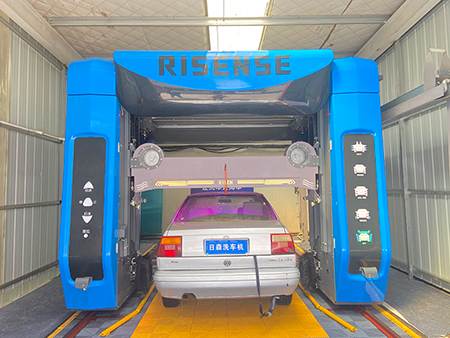

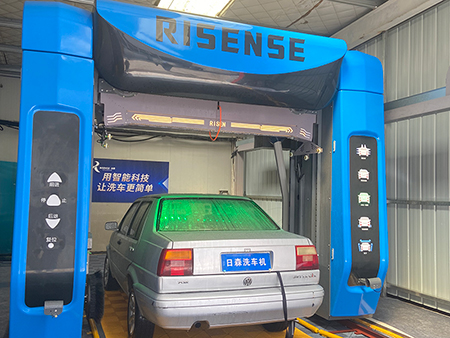

Based on our proven technology of single-arm car wash, Risense newly launched the double-arm car wash machine. This new type double-arm car wash system combines touchless car wash technology and single arm precision washing, realizing car washing in a more efficient manner. Besides, two sides washing combined with the roof high pressure water washing, this new car washer can clean the car in all directions.

Technical Parameter

Model	HP-280
Overall dimension	250036203100mm
Installation size	115046003600mm
Wash bay size	250016002000mm
Voltage	3-phase 380V 50Hz
Power	Total power: 42kW, max. working power: 33kW
Water pump pressure	8MPa
Air source pressure	0.6-0.7MPa
Available car to wash	Car/coach/business car within 7 seats
Car washing size	530019502050mm
Car wash capacity	fine wash: 6 min/car
Water consumption	650L/car
Power consumption	1.95kWh/car
Shampoo consumption	35-60ml/car
Wipe-free detergent shampoo consumption	30-50ml/car
Wax consumption	30-40ml/car

Configuration

Frame	Hot-dipped galvanized steel frame
Frequency converter	Delta
Touch screen	KINCO
Electric control system	Delta
High pressure plunger pump	LTD
Ultrasonic sensor	P F
Photoelectric sensor	Banner from the USA
Proximity sensor	P F
Contactor	Schneider
Metering pump	Newdose

Features

"EMERGENCY STOP" button
The "EMERGENCY STOP" button is set to allow car wash machine to stop running at any time, greatly preventing injuries.
Double swing arm high-pressure water system
Double swing arm can follow the car wash machine to walk back and forth for high-pressure flushing, and rotate at the front and rear of the car for washing.

Contour-following drying system
Built in contour-following drying system, 4 blowers and 3 air outlets
Telescopic tire brush
Telescopic tire brush can accurately position the tire hub, and the follow-up nozzle ensures washing in place.

Advantages

1. Contour-following drying system, high pressure water sprayer and blower dryer

1）Side and top contour-following drying system to fully cover the car surface with cleaning foam
2）Top high pressure water contour-following sprayer, able for automatically moving up and down according to the shape of the car roof while keeping appropriate tilt, to enhance washing performance.
3）Top contour-following drying system with 3 opto-electronic sensors placed in a triangular shape. The dryer moves up once the sensors get triggered to prevent car damage.

2. Double high pressure water spraying arms

Double high pressure water spraying arms, able for cleaning the entire vehicle by self-rotating and vehicle-following, good cleaning performance.

Car washing process:

Chassis washing --- contour-following foam spraying --- top contour-following high pressure water spraying --- side arm high pressure water spraying --- tire washing --- water wax spraying --- contour-following drying
