Applications
- Welding Equipment for minor construction projects
- Home decoration industry welding machine
- Welding Equipment for Farm and Ranch
- Portable Welder for Repairs and Home DIY

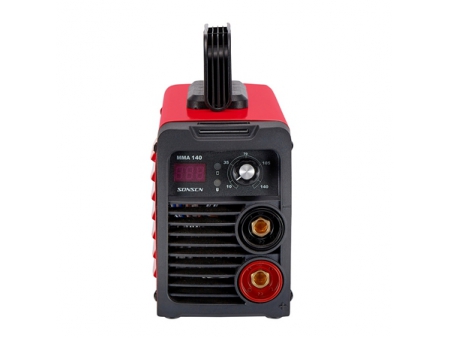

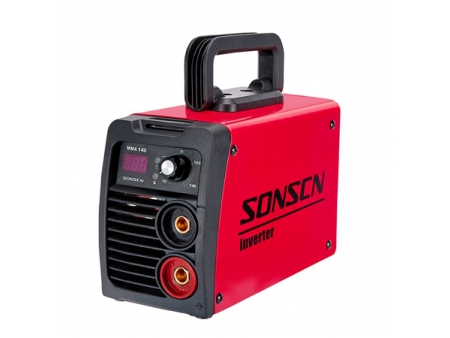

MMA Welder Type: SD Bi-voltage 160 ~110/220V
Request a Quote
- Advanced IGBT inverter technology: makes this welder more compact and energy saving, easy to operate and carry.
- Dual-voltage 110/220V: equipped with dual voltage 110V/220V input power supply, which can automatically match the voltage.
- Generator compatible: The MMA welder will be able to operate when powered by a generator.
- Wide range of input voltages: single-phase 100-260V.
- Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc and welding current.
| Power Voltage | 110/220V 1ph | Duty Cycle | 60% |
| Input Voltage Frequency | 50/60hz | Efficiency | 85% |
| Input Current | 38/24A | Welding Rod | Up to 3.2mm(1/8") |
| Rated Input Power | 5.2KVA | Insulation Class | H |
| No-load Voltage | 75V | Protection Class | IP21S |
| Output Voltage | 25.2V | Cooling Type | Axial ventilation |
| Rated Output Current at 220V | 10-130A | Weight | 2.8 kg |
| Rated Output Current at 110V | 10-110A | Dimension | 23*10*14.5 cm |
Features
- Advanced IGBT inverter technology
Makes this welder more compact and energy saving, easy to operate and carry.
- Dual-voltage 110/220V
Equipped with dual voltage 110V/220V input power supply.
- Generator compatible
The MMA welder will be able to operate when powered by a generator.
- Wide range of input voltages
Single-phase 100-260V.
- Hot start & anti-stick & built in arc force
Provides quick and easy arc starting, stable welding arc and welding current.
- Premium welding performance
Support welding rods with a maximum diameter of 3.2mm (1/8"). Suitable for welding electrodes such as rutile, acidic, alkaline, stainless steel, cellulose, 7018, 6010, 6011, 6013, etc. Good performance on welding low carbon steel, carbon steel, alloy steel, stainless steel, and some non-ferrous metals.
- Built to last
The axial fan increases the heat dissipation of power devices, greatly extending the service life.
- DC lift TIG capacity
- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.

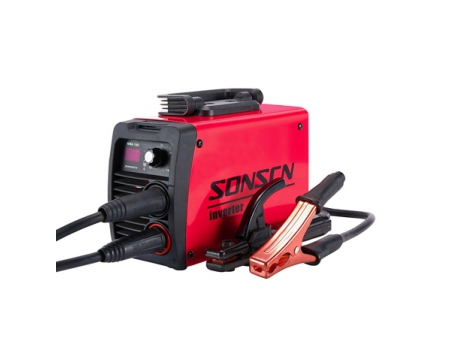

Standard Accessories
- Electrode holder with cable

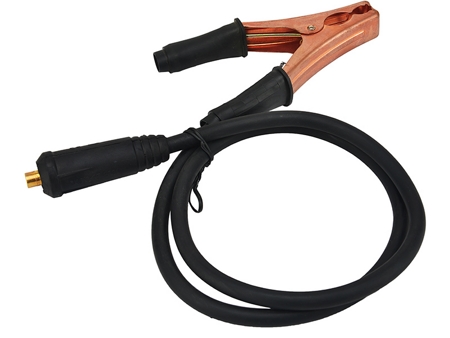

- Earth clamp with cable
Optional Accessories
- Plastic tool box
- Welding mask
- Wire brush
FAQs
This welder comes with dual voltage 110V/220V power input and can automatically switch. It can use various types of welding rods, making the equipment more flexible. It utilizes IGBT inverter technology, making the equipment smaller and more energy-efficient.
The MMA welding machine also supports TIG welding by attaching an argon arc welding torch. Only lift TIG is available.
The insulation class of this model is H, which means that the heat resistance level of the insulation material used in the welder is rated H, allowing for a working temperature of 180 ℃. This is a very high insulation class.
This MMA welder is a versatile welding machine, and it handle mild steel, carbon steel, carbon-containing alloy steel, non-ferrous metals, and other materials.
SONSCN is a professional manufacturer of welding equipment with a complete welding machine production line. We provide production and customization service of welding equipment.
Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please to view.
Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.
If you have any questions about our welders, please email us or give us a call.
