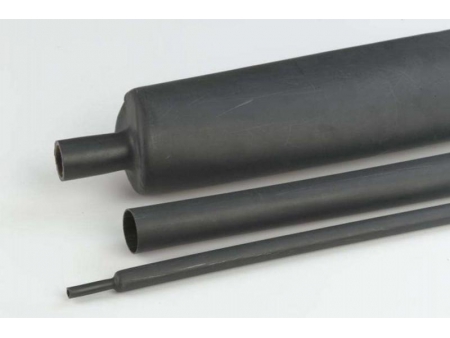

Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF
Model: RSFR-(2X)125HPF
Halogen free, red phosphorus free, flame-retardant heat shrinkable tube
RSFR-(2X)125HPF single wall heat shrink tubing is halogen free and red phosphorus free heat shrinkable tube. Made from radiation cross-linked polyolefin, this heat shrink tubing has great performance, less smoke and low toxicity when it burns, primarily suitable for wire insulation, corrosion and mechanical protection, as well as cable harnessing and protection.
Features
- 2:1 shrink ratio
- Flame retardant
- Resistant to acid and alkali
- Can be used in applications with strict requirement of environmental protection
- Continuous operating temperature: -55℃~125℃
- Fully shrink temperature: ≥125℃
- Electrical insulation
- Strain relief for connectors and splices
- Protection against mechanical damage and abrasion
- Moisture and corrosion resistance
- Wire bundling
- Cable harnessing
Item | Test Method | Requirement | ||
Physical Property | Tensile strength (MPa) | GB/T1040 | ≥10.4 | |
Elongation (%) | GB/T1040 | ≥200 | ||
Tensile strength after aging | UL224; 158℃×168hr | ≥7.3 | ||
Elongation after aging (%) | UL224; 158℃×168hr | ≥100 | ||
Heat resistance | UL224; 200℃×4hr | No viscidity, no cracking | ||
Cold blend | UL224; -30℃×1hr | No cracking | ||
Electrical Property | Dielectric withstand | 300V | UL224 | No breakdown at 1500V |
600V | UL224 | No breakdown at 2500V | ||
Dielectric | GB/T1408 | ≥15 | ||
Volume resistance (Ω.cm) | GB/T1410 | ≥1×1014 | ||
Chemical Property | Anti corrosion | UL224; 158℃×168hr | Pass | |
Copper stability | UL224; 158℃×168hr | Pass | ||
Flammability | UL224 | VW-1 |
Size (mm) | As supplied (mm) | After recovery (mm) | Standard packaging (m/spool) | Application (mm) | ||
I.D | W.T. | I.D | W.T. | |||
Ø0.6 | 0.9±0.2 | 0.18±0.05 | ≤0.40 | 0.33±0.10 | 200 | 0.4~0.7 |
Ø0.8 | 1.1±0.2 | 0.18±0.05 | ≤0.50 | 0.33±0.10 | 200 | 0.6~0.8 |
Ø1.0 | 1.5±0.2 | 0.20±0.05 | ≤0.65 | 0.36±0.10 | 200 | 0.75~0.9 |
Ø1.5 | 2.0±0.2 | 0.20±0.05 | ≤0.85 | 0.36±0.10 | 200 | 0.95~1.4 |
Ø2.0 | 2.5±0.2 | 0.20±0.05 | ≤1.00 | 0.45±0.10 | 200 | 1.1~1.8 |
Ø2.5 | 3.0±0.2 | 0.20±0.05 | ≤1.30 | 0.45±0.10 | 200 | 1.35~2.3 |
Ø3.0 | 3.5±0.2 | 0.23±0.05 | ≤1.50 | 0.45±0.10 | 200 | 1.6~2.7 |
Ø3.5 | 4.0±0.2 | 0.23±0.05 | ≤1.80 | 0.45±0.10 | 200 | 1.85~3.2 |
Ø4.0 | 4.5±0.2 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 200 | 2.1~3.6 |
Ø4.5 | 5.0±0.2 | 0.28±0.05 | ≤2.30 | 0.56±0.10 | 100 | 2.35~4.0 |
Ø5.0 | 5.5±0.2 | 0.28±0.05 | ≤2.50 | 0.56±0.10 | 100 | 2.6~4.5 |
Ø6.0 | 6.5±0.2 | 0.28±0.05 | ≤3.00 | 0.56±0.10 | 100 | 3.1~5.4 |
Ø7.0 | 7.5±0.3 | 0.30±0.05 | ≤3.50 | 0.56±0.10 | 100 | 3.7~6.3 |
Ø8.0 | 8.5±0.3 | 0.30±0.08 | ≤4.00 | 0.56±0.10 | 100 | 4.2~7.2 |
Ø9.0 | 9.5±0.3 | 0.30±0.08 | ≤4.50 | 0.56±0.10 | 100 | 4.7~8.0 |
Ø10 | 10.5±0.3 | 0.30±0.08 | ≤5.00 | 0.56±0.10 | 100 | 5.2~9.0 |
Ø12 | 12.5±0.3 | 0.30±0.08 | ≤6.00 | 0.56±0.10 | 100 | 6.2~11 |
Ø14 | 14.5±0.3 | 0.35±0.08 | ≤7.00 | 0.70±0.10 | 100 | 7.3~13 |
Ø15 | 15.5±0.4 | 0.35±0.08 | ≤7.50 | 0.70±0.10 | 100 | 7.8~14 |
Ø16 | 16.5±0.4 | 0.35±0.10 | ≤8.00 | 0.70±0.10 | 100 | 8.3~15 |
Ø18 | 19.0±0.5 | 0.35±0.10 | ≤9.00 | 0.70±0.10 | 100 | 9.3~17 |
Ø20 | 22.0±0.5 | 0.40±0.10 | ≤10.00 | 0.83±0.15 | 100 | 10.4~19 |
Ø22 | 24.0±0.5 | 0.40±0.10 | ≤11.00 | 0.83±0.15 | 100 | 11.4~21 |
Ø25 | 26.0±0.5 | 0.45±0.10 | ≤12.50 | 0.90±0.15 | 50 | 12.8~24 |
Ø28 | 29.0±0.5 | 0.45±0.10 | ≤14.00 | 0.90±0.15 | 50 | 14.4~29 |
Ø30 | 31.5±1.0 | 0.45±0.12 | ≤15.00 | 1.00±0.15 | 50 | 16~29 |
Ø35 | 36.5±1.0 | 0.45±0.12 | ≤17.50 | 1.00±0.15 | 50 | 18~34 |
Ø40 | 41.5±1.0 | 0.50±0.12 | ≤20.00 | 1.00±0.15 | 50 | 21~39 |
