Butt Fusion Machine FX1000

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-10-butt-fusion-machine.html

630–1000mm Plastic Pipe Welding

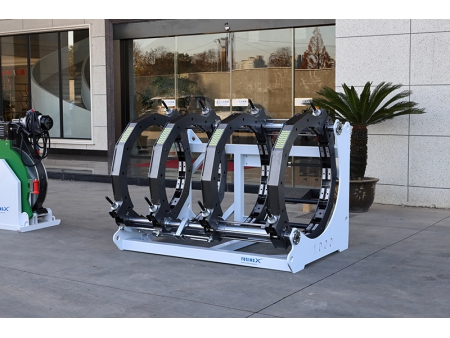

FX1000 is a butt fusion machine designed for HDPE pipe welding from 630 mm to 1000 mm. Built with a reinforced frame, the fusion machine delivers stable welding performance in heavy-duty projects. It is equipped with DynaFX™ hydraulic power unit, with an optional digital pressure gauge for more accurate monitoring and operation control. The heating plate provides precise heating performance for reliable joint quality in large-diameter pipeline construction.

Applications

The hydraulic butt fusion machine provides contractors with a dependable solution for:

Municipal infrastructure projects
Industrial pipeline systems
Energy pipeline construction

Specifications

Model	FX1000
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	630-1000 mm
Applicable pipe diameters	630-710-800-900-1000 mm
Power supply	380V, 50Hz, 3PH
Total power	24.5 kW
Heating plate	17.5 kW
Facer	3 kW
Hydraulic unit	4 kW
Pressure adjusting range	0-12 MPa
Max. temperature	270ºC
Temperature deviation	±7ºC
Piston area	36.52 cm²

Details

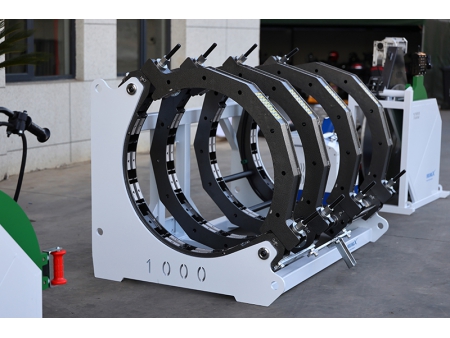

1. Frame Reinforced frame with strong load-bearing capacity for stable performance in heavy-duty welding applications.
1. DynaFX™ Hydraulic Power Unit Optional digital pressure gauge is available for more accurate pressure monitoring and easier operation control.
1. Heating Plate Surface temperature deviation is controlled within ±7°C for more even heating and consistent welding.
1. Facer (Milling Cutter)
  - Newly designed anti-release clamping jaws provide a safer structure and more convenient operation
  - Gear-driven transmission ensures efficient, stable, and durable performance
  - Powerful copper-wound motor supports reliable facing performance
  - Reinforced aluminum die-cast facer plate with durable double-edged HSS blades
1. Tool Holder
  - Full-cover heating plate protection improve user safety and heat retention
  - Wide base with lifting lugs for easier handling and movement on site
1. Modular Anti-Slip Pad Blocks
  - Provide secure pipe clamping during welding
  - Can accommodate non-standard pipes for greater job-site flexibility
1. Electric Hoist
  - Optional electric hoist for easier lifting and positioning of the facer and heating plate
  - Connects to the rear mounting plate of the frame to enhance overall stability
  - Designed for quick installation and removal
