Butt Fusion Machine FX200

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-2-butt-fusion-machine.html

63–200mm Plastic Pipe Welding

Video

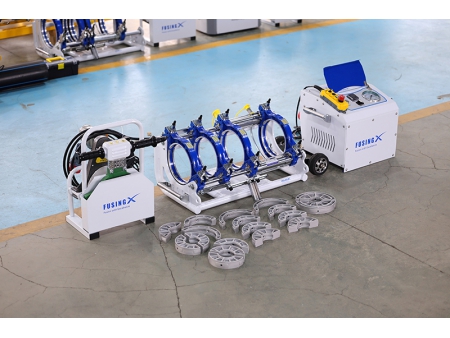

FX200 is a butt fusion machine designed for HDPE pipe welding from 63 mm to 200 mm. It uses a heating plate to bring pipe ends to fusion temperature, then applies controlled hydraulic pressure to form strong, leak-tight joints.

Applications

This hydraulic butt fusion machine is ideal for the following projects:

• Gas distribution
• Wastewater treatment
• Agricultural irrigation
• Mining
• Water supply and drainage
• Cable conduit

Specifications

Model	FX200
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	63-200 mm
Applicable pipe diameters	63-75-90-110-125-140-160-180-200 mm
Power supply	220 V, 50 Hz, 1 PH
Total power	3.95 kW
Heating plate	1.8 kW
Facer	1.4 kW
Hydraulic unit	0.75 kW
Max. temperature	270ºC
Pressure adjusting range	0-8 MPa
Temperature deviation	±5ºC
Piston area	15.32 cm²

Details

• 1. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.
• 1. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.
• 1. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.
• 1. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.

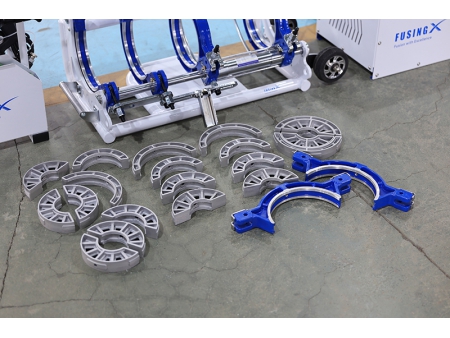

• 1. Single-Size Clamp Inserts Cast aluminum clamp inserts simplify size changes. From 63 mm to 200 mm, each pipe size requires two inserts, helping improve work efficiency and clamping accuracy.
• 1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
