Butt Fusion Machine FX500

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-7-butt-fusion-machine.html

180–500mm Plastic Pipe Welding

Video

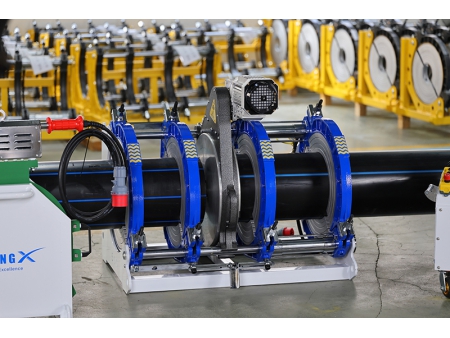

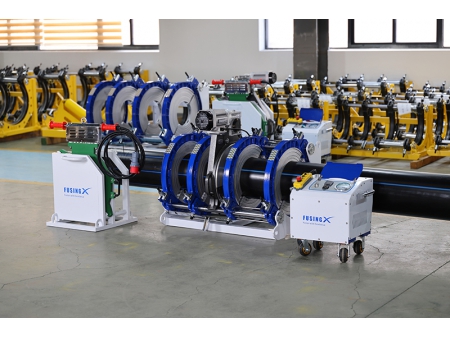

FX500 is a butt fusion machine designed for HDPE pipe welding from 180 mm to 500 mm. Engineered for joining thermoplastic pipes and fittings made of PE, PP, and PVDF, this pipe fusion machine utilizes controlled heating (deviation ±7ºC) and optimized hydraulic pressure to produce strong, reliable joints. The hydraulic pressure unit offers an optional digital pressure gauge for more precise pressure monitoring.

Applications

The hydraulic butt fusion machine provides a dependable solution for medium- to large-diameter pipeline installation, and is widely used in:

Gas utility projects
Water supply systems
Drainage infrastructure
Municipal construction
Plastic pipe manufacturing

Specifications

Model	FX500
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	180-500 mm
Applicable pipe diameters	180-200-225-250-280-315-355-400-450-500 mm
Power supply	380V, 50Hz, 3PH
Total power	9.1 kW
Heating plate	6.5 kW
Facer	1.5 kW
Hydraulic unit	1.1 kW
Pressure adjusting range	0-10 MPa
Max. temperature	270ºC
Temperature deviation	±7ºC
Piston area	22.38 cm²

Detail Highlights

1. Frame Reinforced frame with strong load-bearing capacity for stable performance in heavy-duty welding applications.
1. DynaFX™ Hydraulic Power Unit Optional digital pressure gauge is available for more accurate pressure monitoring and easier operation control.
1. Heating Plate Surface temperature deviation is controlled within ±7°C for more even heating and consistent welding.
1. Facer (Milling Cutter) Full gear transmission ensures stable and durable performance.
1. Multi-Size Clamp Inserts Designed for secure clamping, even load distribution, and long-term reliability. Clamp inserts are available in 180 / 200 / 225 / 250 / 280 / 315 / 355 / 400 / 450 mm to cover a wide range of pipe diameters.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
