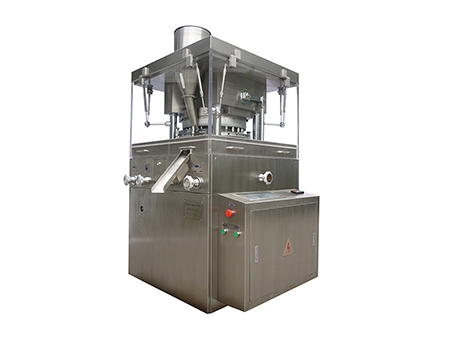

Rotary Tablet Press, ZPW-23
Request a Quote
This rotary tablet press is ideal for manufacturing various types of tablets, such as effervescent, sweetener, milk, chlorine, and detergent tablets. It's widely used in industries including pharmaceuticals, chemicals, food, and plastics. The tablet making equipment is fully automated, facilitating continuous tablet production with options for single or dual outputs. Additionally, it can manufacture bi-colored tablets, making it a preferred choice for high-volume production environments.
Features
- Due to the compact design, the rotary tablet press requires minimal floor space while delivering high output and energy efficiency. Its simple operation makes it user-friendly.
- It uses 316 stainless steel for all parts that come into contact with materials, meeting GMP standards and ensuring safety and cleanliness.

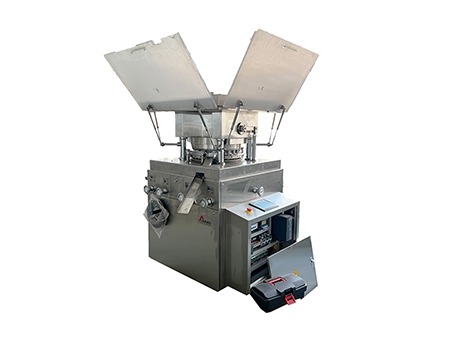

- Designed with clear Perspex windows on all sides, they are allowed for full opening, which simplifies both cleaning and maintenance tasks.
- It features a robust hydraulic system that provides stable and adjustable pressure, capable of handling tablets up to 27mm in diameter.
- The inclusion of an electromagnetic clutch in the drive system reduces the machine's load, enhancing both the safety and stability of operations.
Technical Specifications
| Number of stations | 23 |
| Max. pressure (kN) | 100 |
| Max. filling depth (mm) | 17 |
| Max. tablet diameter (mm) | 27 |
| Max. tablet thickness (mm) | 7 |
| Max. rotation speed (r/min) | 14-30 |
| Production capacity (pcs/h) | 40000-83000 |
| Power supply | 3kW 380V 50Hz (220V 60Hz) |
| Overall dimension (mm) | 1300*1200*1750 |
| Weight (kg) | 2000 |
