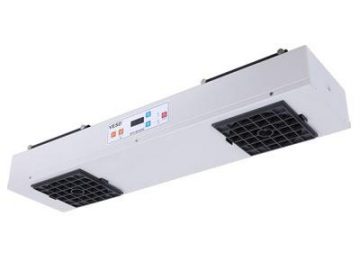

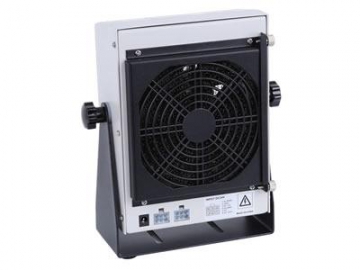

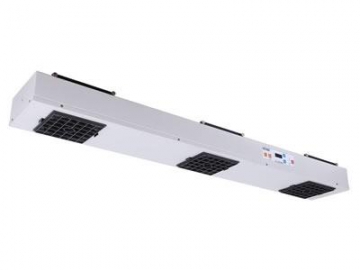

Self-cleaning Antistatic Air Blower / ESD Ionizer
Description:
This self-cleaning antistatic air blower is a convenient, maintenance free antistatic device. The machine cleans itself automatically and provides outstanding electrostatic elimination effects for long-term stability. We can also provide you with customized products for various specifications based on your needs.
| Model | ||||||
| Input voltage | DC24V±5% | |||||
| Power consumption | About 12W | |||||
| Ion generation method | Corona discharge | |||||
| High voltage type/applied voltage | High frequency AC method/±2400V | |||||
| LED indicator | H.V | When static elimination is running normally, the green indicator is on. | ||||
| When static elimination is running abnormally, the red indicator is on. (buzzer alarms) | ||||||
| FAN | When fan is running normally, the green indicator is on. | |||||
| When the fan doesn't turn or is stuck, the red indicator is on. (buzzer alarms) | ||||||
| Air flow | 2.5-4.5m3/min | |||||
| Static elimination speed | Within 1S | |||||
| Ion balance | Within 0±10V (measuring distance is 300mm) | |||||
| Self-cleaning time | It is set to be adjustable within 0-999h. | |||||
| Ozone generation | (ppm) within 0.005ppm (the distance is 50mm ) | |||||
| Operating temperature | Indoor: 0-40°C | |||||
| Operating humidity | 20-70% RH | |||||
| Size | 143*212*90mm | 330x212x90mm | 480x212x90mm | |||
| Weight | 1.8KG | 3.6KG | 5.2 KG | |||
Features:
Self-cleaning: the self-cleaning time can be adjusted between 0 to 999 hours according to the environment, which can reduce the manual cleaning frequency.
Rapid maintenance: the front and back net cover and the discharge needle can be rapidly disassembled, making it convenient to clean, maintain and replace.
Power-off memory: After being powered on, it will run automatically, following the previous setting parameters.
Special alloy needle: this ESD ionizer adopts a special alloy discharge needle, which can handle the wear of long-term use.
Monitoring alarm: high voltage and fan running indicator, abnormal alarm indicator and buzzer alarm.
Signal output: the alarm signal can be connected to the device for transmission (signal line matching).
Whole machine locking: when the machine is locked, all the buttons will not work until it is unlocked.
Auto balance: with the automatic ion balance system, it can be within 0±10V.
Power-off protection: when the front air window is taken down, the whole machine will be power-off.
In series usage: this product can be used in series of multi-blowers.
