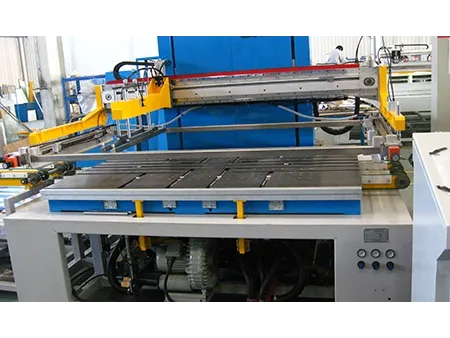

Automatic Screen Printing Machine for Home Appliance Glass

Home appliance glass printing machines for screen printing on glass panels for electrical appliances

These screen printing machines are designed for printing on glass panels used in household appliances and furniture. Their fully automatic operation improves consistency and productivity, which is suitable for high-volume industrial printing applications.

Technical Specifications

Model	BWSP-1012VA
Max. printing size (mm)	1000 × 1200
Min. printing size (mm)	300 × 400
Glass thickness (mm)	3–12
Max. screen frame size (mm)	1500 × 1900
Loading & unloading method	Conveyor belt
Positioning adjustment range (mm)	X: ±20; Y1: ±20; Y2: ±20
Printing accuracy (mm)	±0.20
Glass conveying direction	SEL (short edge leading)
Power supply	3N, 380V, 50Hz, 4.5 kW

Features

The printing and ink-return movements are motor-driven to ensure smooth and stable operation throughout the process.
Both the squeegee and ink-return blade use a pneumatic lifting mechanism, with adjustable pressure settings to suit different ink types and printing requirements.
The entire printing unit can be lifted, making it easier to replace the squeegee or ink-return blade and to clean the screen.

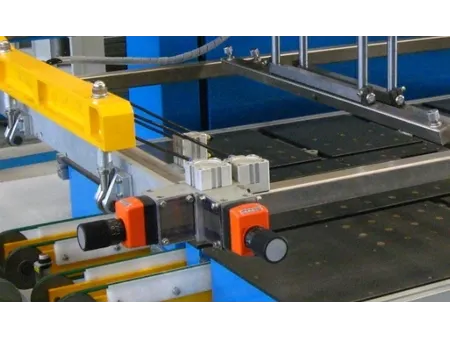

The screen frame includes X, Y1, and Y2 fine-tuning controls with ±15mm of adjustment, allowing quick and accurate alignment between the screen and the glass panel for precise printing.
