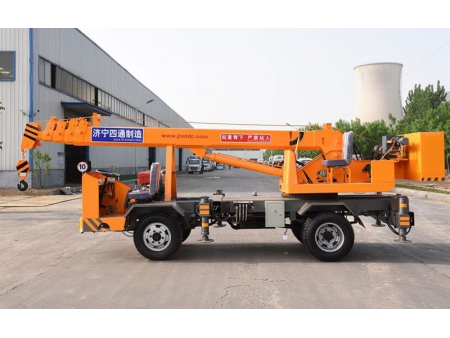

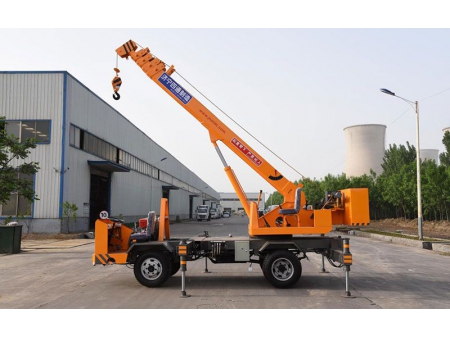

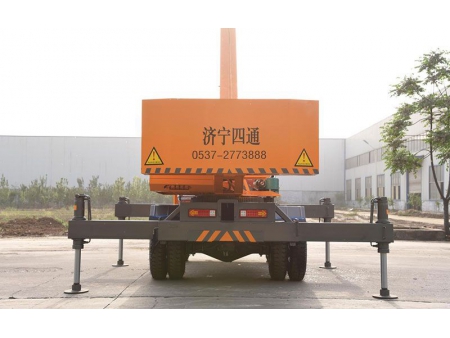

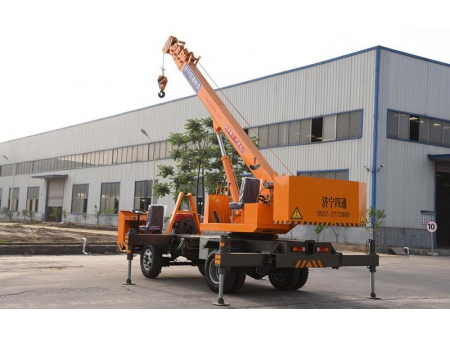

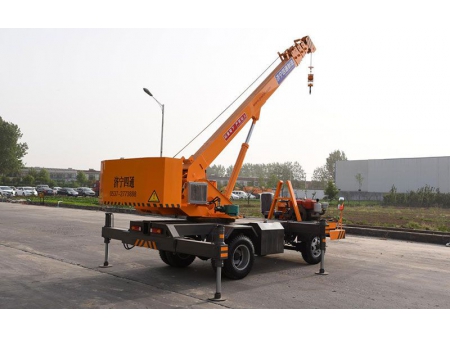

STSQ4A is a 4-ton light duty crane designed with 5-section telescopic boom, the maximum lifting height is up to 18m. This mobile crane is configured with Changchai single-cylinder engine, 700-16 tyres and 11kW motor, featuring easy operation and maintenance.


Specification
Max. loading capacity
4t
Max. lifting height
18m
Longitudinal outrigger span
3.9m
Transversal outrigger span
3m
Boom
5 sections (4.5m per section)
Dimensions
7.0m*2.03m*2.3m
Motor power
11kW
Slewing speed
0-2.8r/min
Engine power
34kW 46HP
Tyres
7.00-16
Wheelbase
2.68m
Crane weight
4.62t
Travel speed
40km/h
Brake type
oil brake
Total mass
4610kg
Single rope winding speed
53m/min
Max. lifting moment
100kN.m
Derailleur model
130
Gearbox
130 single speed
Crane boom structure
hexagonal cross section
Reduction box
WC100 Turbo reduction box
Swing bearing
QWA800.25A 50MN
Warning horn
mono snail horn
