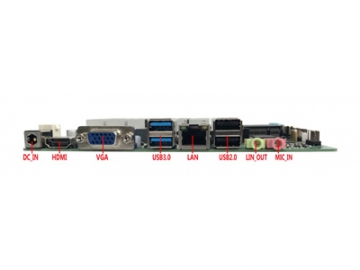

QM6637 Mini-ITX Motherboard, 2nd/3rd Gen Intel Core-i Processors, DC-Power
Request a Quote
Parameters
| Dimension | 170mm*170mm*18mm | |
| CPU | Support 2nd and 3rd generation Intel 988 CPU of full range of laptops, e.g. i3-2350M, i5-2540M, i7-2620M; i3-3110M, i5-3210M, i7-3540M etc. | |
| Chipset | Intel 6 series chipset: HM65, HM67, QM67 Intel 7 series chipset: HM70, HM76, HM77, QM77 | |
| Power supply | 1*DC_IN | DC 12V Power consumption: about 60W Power of DC 12V7A or above is recommended |
| 1*DC_PWR | ||
| Memory | 1*DIMM slot | NB-DDR3 memory, support 1600MHz memory, up to 8GB |
| LAN | 1*LAN port | Realtek 8111H gigabit network card, support wake-on-LAN and PXE boot free |
| Display | Graphics card | Intel HD Graphics 3000/4000, support single/dual display duplicate, dual display extend, DOS: single display |
| 1*VGA standard port | Support maximum resolution 1920*1200@60HZ | |
| 1*VGA_OUT pin | Support maximum resolution 1920*1200@60HZ （1*12Pin, 2.0mm） | |
| 1*HDMI 1.4 port | Support maximum resolution 1920*1080@60HZ | |
| 1*HDMI_CON pin | Support maximum resolution 1920*1080@60HZ （2*8Pin, 2.0mm） | |
| 1*LVDS pin | Support maximum resolution 1920*1080@60HZ （2*15Pin, 2.0mm） | |
| 1*LVDS_PWR pin | LVDS voltage regulate pin (2*3Pin，2.54mm） | |
| 1*INVERT pin | LVDS backlight control pin (1*6Pin，2.0mm） | |
| USB | 2*USB3.0 port | Rear standard USB3.0 port |
| 2*USB2.0 port | Rear standard USB2.0 port | |
| 1*F_USB1 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| 1*F_USB2 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| Audio | Realtek ALC662 HD digital audio decoder, high fidelity audio controller with 6 channels | |
| 1*LIN_OUT port | Support audio output | |
| 1*MIC_IN port | Support microphone input | |
| 1*JAMP pin | Support 8Ohm 5W speaker dual channel output(power amplifier) (1*4Pin，2.0mm) | |
| 1*F_AUDIO pin | Standard audio pin (2*5Pin，2.54mm） | |
| Storage devices | 1*SATA1 port | Standard SATA, support SATA3.0 |
| 1*SATA2 port | Standard SATA, support SATA2.0 | |
| 1*MSATA port | Support MINI_SATA, MSATA2.0 | |
| 1*SATA_PWR pin | SATA power pin, 5V, 12V power（1*4Pin，2.54mm） | |
| Switch | 1*F_PANEL pin | Switch, power LED, HDD LED, reset pin (2*5Pin, 2.54mm） |
| 1*AUTO_SW port | Power switch pin (1*3Pin，2.0mm） | |
| Other I/O | 2*COM pin | Support standard RS232, no RS485 (2*5Pin, 2.54mm） |
| 1*MINI_PCIE port | Support WIFI/3G/4G | |
| 1*SIM_SLOT slot | Support SIM card When using 3G/4G, SIM card is needed. | |
| 1*CLR_CMOS pin | Motherboard reset, discharge pin (1*3Pin，2.54mm) | |
| 2*FAN pin | Fan pin (1*3Pin，2.54mm） | |
| Operating Environment | Working temperature: -20℃-60℃; Relative humidity: 5%-95%, non-condensation | |
| BIOS | AMI BIOS，support power on, timing switch, remote switch, intelligent identification devices | |
| Watch Dog | Watch dog programming, support hardware reset (256 levels, 0-255 seconds) | |
| OS | Support Windows 10, Windows 8, Windows 7, Linux etc. | |
Optional motherboard
| Model | CPU | LAN（RJ45） | COM | USB | Memory（MAX） | Power |
| QM6637 (with IO) | Support Intel 2nd generation, 3rd generation full range of notebooks 988 CPU | 1 | 2 | 8 | 8GB | 12V |
| QM6637 (without IO) | 1 | 0 | 8 | 8GB |
Certificate
CE, CCC, ISO, MSDS, UN38.3, UN3091, POA
