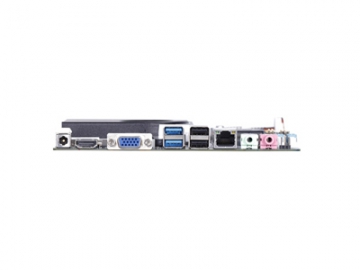

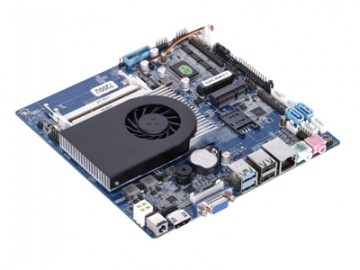

QM9600/QM9700 Mini-ITX Motherboard, 6th/7th Gen Intel Core-i/ Celeron Processors, DC-Power
Request a Quote
Features
- Support 6th generation CPU: I3-6100U, I5-6200U, I7-6500U, etc.
- Support 7th generation CPU: I3-7100U, I5-7200U, I7-7500U, etc.
- HDMI: 4K ultra-clear
- 2*DDR3 1600/1866 MHz low voltage (1.35 V) memory channels, up to 16GB RAM
- HDMI, VGA / (DVI), LVDS, support synchronously or asynchronously three-screen display
- Onboard 6 COM interface, support COM port 5V/12V power output and 1*485
- Onboard 1*MINIPCIE supports WIFI/3G/4G, 1*MSATA storage device
- Gigabit network card, support dual Ethernet ports
- Support dual 8, 24 bits LVDS
Parameters
| Model | QM9600 | QM9700 |
| Dimensions | Mini-ITX, 170mm*170mm (small-sized, full-featured, ultra-thin) | |
| CPU | Support 3855U, 3955U and Skylake i3, i5, i7 | Support 3865U, 3965U and Kabylake i3, i5, i7 |
| Chipset | Intel Soc chipset | |
| Memory | 2* SO-DDR3L 1600/1866 memory channels, up to 16G | |
| Display port | VGA, HDMI(4K ultra clear), LVDS(dual 8, 24 bits), integrated HD510/HD610 graphics card, support DVMT, support 3 independent displays | |
| Storage devices | 2*SATA3.0, 1*MSATA3.0 | |
| LAN port | 1*Realtec 8111F gigabit network card, support wake-on-LAN, support dual Ethernet ports | |
| Audio port | Realtek ALC662 HD digital audio decoder, support Line-In, Line-out, MIC-in, equipped with front audio jacks, support 3W/5W speaker | |
| I/O interfaces | 4*USB3.0，6*USB2.0，6*RS232 COM，1*RS485 Support COM port 5V/12V power output | |
| Hardware monitoring/watchdog timer | System monitor(CPU temperature, fan speed, system temperature) | |
| Expansion interface | 2* Mini-PCIE slots, support WIFI/3G/MSTA/GPS | |
| Environment | Power supply: DC 12V/19V Operation temperature: -10-60℃ Relative humidity: 5%-95%, non-condensing | |
| BIOS | AMI BIOS; support read only, power on, timing switch, remote switch, intelligent identification devices | |
| Supported OS | Windows WIN8/10,Linux | |
| Certificate | CE, CCC, ISO, MSDS, UN38.3, UN3091, POA | |
| Weight | ||
Optional motherboard
| Model | LAN（RJ45） | COM | USB2.0 | USB3.0 |
| QM9600-2C | 1 | 2 | 6 | 4 |
| QM9600-2L2C | 2 | 2 | 4 | 4 |
| QM9600-6C | 1 | 6 | 6 | 4 |
| QM9600-2L6C | 2 | 6 | 4 | 4 |
| QM9700-2C | 1 | 2 | 6 | 4 |
| QM9700-2L2C | 2 | 2 | 4 | 4 |
| QM9700-6C | 1 | 6 | 6 | 4 |
| QM9700-2L6C | 2 | 6 | 4 | 4 |
