M818SE Mini-ITX Motherboard, 6th/7th Gen Intel® Skylake/ Kaby lake Processors, DC-Power
Request a Quote
Parameters

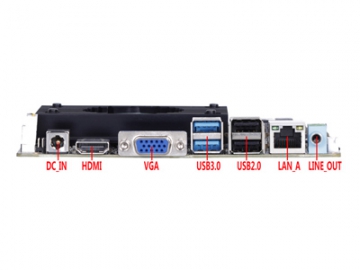

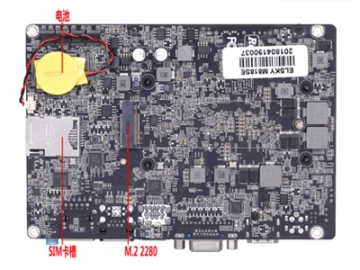

| Dimension | 145mm*100mm*18mm | ||
| CPU | 6th generation | 3855U, 3955U and Skylake i3-6100U, i5-6200U, i7-6500U etc. | |
| 7th generation | 3865U, 3965U and Kabylake i3-7100U, i5-7200U, i7-7500U etc. | ||
| Chipset | Single chip | ||
| Power supply | 1*DC_IN / ATX | DC 12-24V (wide supply voltage) Power: about 35W Recommended DC 12V5A(current: 5A or more than 5A) | |
| Memory | NB-DDR4 2133MHz memory, 4G/8G | ||
| Display | 6th generation | Intel HD Graphics 510/520 controller | support single display, dual display/three display duplicate, dual display/three display extend, DOS: single display |
| 7th generation | Intel HD Graphics 610/620 controller | ||
| 1*VGA DB15 port | Support maximum resolution 1920*1200@60HZ | ||
| 1*VGA_OUT pin | Support maximum resolution 1920*1200@60HZ (1*12Pin, 2.0mm） | ||
| 1*HDMI 1.4 port | Support maximum resolution 4096*2304@24/30HZ | ||
| 1*EDP pin | Support maximum resolution 4096*2304@60HZ (2*15Pin, 2.0mm） | ||
| 1*BKLT PWR1 pin | EDP backlight voltage regulate pin (1*3Pin, 2.54mm） | ||
| 1*LCD_PWR1 pin | EDP voltage regulate pin (2*3Pin, 2.0mm) | ||
| LAN | 1*LAN | RTL8111F gigabit network card, support wake-on-LA and PXE boot free | |
| 1*Mini-PCIE port | Support WIFI/3G/4G/Bluetooth etc., support MSATA(optional) | ||
| Storage devices | 1*SATA1 port | Standard SATA3.0, maximum transmission speed: 6.0 Gbps | |
| 1*M.2_SSD | Support M.2 2280， support SATA/NVME(PCIE)(optional) | ||
| Audio | Realtek ALC662 HD digital audio decoder, 6 channel high fidelity audio controller | ||
| 1*LINE_OUT port | Support audio output | ||
| 1*INT_SPK pin | Support 8Ohm 5W speaker dual channel output(power amplifier)（1*4Pin，2.0mm） | ||
| 1*F_AUDIO pin | Standard audio pin(2*5Pin，2.0mm） | ||
| 1*SPDIF pin | Digital audio pin(1*3Pin，2.54mm） | ||
| USB | 2*USB3.0 port | Rear standard USB3.0 port | |
| 2*USB2.0 port | Rear standard USB2.0 port | ||
| 1*F_USB1 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.0mm） | ||
| 1*F_USB2 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.0mm） | ||
| Switch | 1*F_PANEL pin | Switch, power LED, HDD LED, reset pin (2*5Pin, 2.0mm） | |
| Other I/O | COM1/COM2 pin | Serial port, COM1 support RS232/RS422/RS485 (2*5Pin，2.0mm) | |
| COM3~6 pin | Serial port, support standard RS232 (2*20Pin, 2.0mm） | ||
| 1*JPCOM1 pin | Control COM1 voltage on pin 9 0V/5V/12V （2*3Pin, 2.0mm） | ||
| 1*JPCOM2 pin | Control COM2 voltage on pin 9 0V/5V/12V （2*3Pin, 2.0mm） | ||
| 1*SIM slot | Support SIM card When using 3G/4G, SIM card is needed. | ||
| 1*CLR_CMOS pin | Motherboard reset, discharge pin (1*2Pin, 2.54mm） | ||
| 1*CPUFAN pin | CPU fan pin (1*3Pin, 2.54mm) | ||
| 1*J_GPIO pin | GPIO control pin (2*5Pin, 2.0mm) | ||
| Environment | Operation temperature: -20℃-60℃; relative humidity: 5%-95%, non-condensing | ||
| BIOS | AMI BIOS, support power on, timing switch, remote switch, intelligent identification devices | ||
| Watch Dog | Watch dog programming, support hardware reset (256 levels, 0-255 seconds) | ||
| OS | Support Windows 10, Windows 8, Windows 7, Linux etc. | ||
Optional motherboard
| Model | CPU | 4K | LAN (RJ45） | COM | USB | Memory | Power |
| M818SE-4G | Support 3855U, 3955U, 3865U, 3965U, Skylake 6th generation and Kabylake 7th generation i3, i5, i7 | Support | 1 | 6 | 8 | DDR4 4G | 12V-24V (wide supply voltage) |
| 2 | 6 | 6 | |||||
| M818SE-8G | Support | 1 | 6 | 8 | DDR4 8G | ||
| 2 | 6 | 6 |
