Request a Quote

Dual Outlet Water Filter System

  • Filtration System PCR filter: PP C PP RO composite filter
    RO filter: Reverse osmosis membrane filter
  • Flow Rate 500GPD (1.30L/min), flow rate availability 400GPD-1200GPD
  • Purified/Drain Ratio 2:1 pure to drain
  • Personalized Functions Double RO structure for extra RO flushing
    Anti-flooding design
    Malfunction alert
    Filter life LED indicator on both faucet and machine body
  • Optional Faucet Types Single-handle faucet
    Double-handle faucet
    LED ring faucet
    Smart display faucet
Model Options
  • Model ABT-RO1901M
  • Filter cartridge PCR RO
  • Model ABT-RO1901K
  • Filter cartridge PCR RO
  • Model ABT-RO1901G
  • Filter cartridge PCR RO
Features of 500GPD Reverse Osmosis System

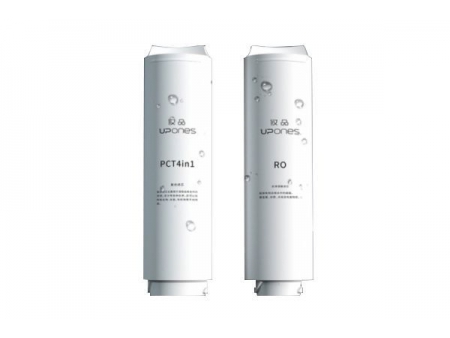

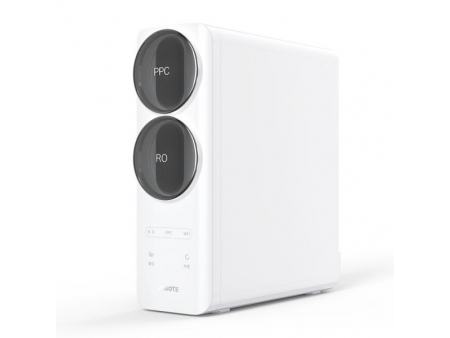

Two filter cartridge, five-stage filtration
Aibote’s tankless double outlet RO water system features a 5-in-2 structure, namely five-stage filtration in two filter cartridges. There are two RO filters in this water filter system, one working independently and the other installed in the PCR filter, which also consists of polypropylene, coconut shell activated carbon, and high-precision polypropylene. The PCR filter is able to eliminate larger particles like sand, rust, suspended matters and colloids. Residual chlorine, smell and unusual colors will also be removed. After being purified, the water tastes better.

The other RO filter works independently. It is made up of several layers of RO membranes that can filter contaminants ranging from 0.0001 to 0.001µm, including heavy metal ions, inorganics, bacteria and viruses.

Two RO filters, no overnight water
Aibote has obtained a patent on the technology of zero overnight water. To realize it, the smaller RO filter inside the water filter system will regularly filter water to flush the bigger RO filter so as to remove residual water. With this feature, you can always access fresh water by simply turning on the tap.

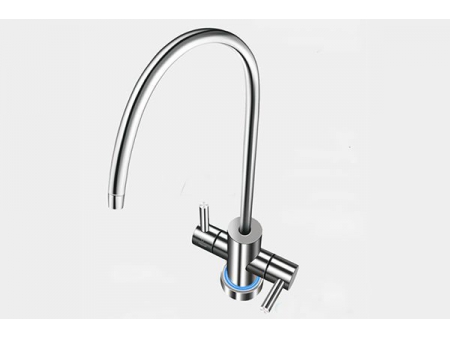

  • The RO water system is designed with a double-handle LED ring faucet, through which the filter lifetime can be monitored;
  • Integrated water circuit for preventing water leakage;
  • The flow rate of the RO water system is adjustable, from 1.04 L/min to 3.12 L/min, satisfying your daily needs for washing and drinking;
  • Two RO filters guarantee no residual water is stored in the RO water system;
  • Quite operation, noise level lower than 50dB;
  • Small footprint, easy installation;
  • Filter lifetime indicator on both system body and faucet;
Specifications
Model ABT-RO1901M

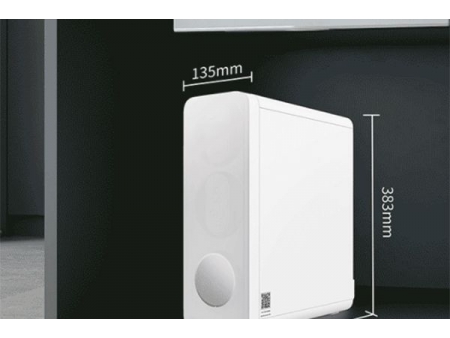

Dimensions 365*135*369mm
Flow rate 500GPD (1.30L/min) (400-1200GPD optional)
Filter cartridge PCR RO
Filtration stage 5-stage
Filter lifetime PCR: 6-12 months RO: 24-60 months (depending on the quality of water source)
Filter cartridge type Disposable filter cartridge
Voltage 24V
Power 80W (depending on water flow rate)
Feed water pressure 0.1-0.4MPa
Working pressure 0.4-0.8MPa
Feed water temperature 5-38℃
Ambient temperature 4-40℃
Water output Single outlet: 6000L (Two outlets: 6000L 6000L)
Optional faucet type Single-handle faucet Double-handle faucet Smart display faucet LED ring faucet
Functions (customizable) TDS display Filter lifetime indicator Operation indicator Malfunction alert "Flush" button "Reset" button
Water leakage alert Full screen flashing, with beeping

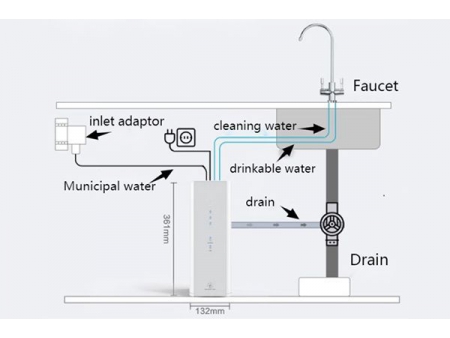

Water Filter System Installation and Filter Cartridge Replacement

Easy Installation, DIY installation

Two ways to indicate filter life

Make economic sense, environmentally friendly (no need for bottled water, less plastic waste)

Compact and tankless design preserve enough under-sink storage space for other items.

Easy change of cartridge

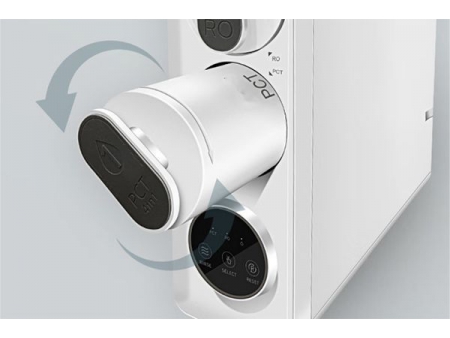

1. Turn the knob counterclockwise and pull out the expired filter
2. Insert a new filter and turn the knob clockwise
3. Put back the front cover and the filter replacement is done

Certificates
  • China Water Efficiency Label
  • CE Certificate
  • Validation of National Health Commission of PRC
  • NSF International
  • ISO 9001 Quality Management System

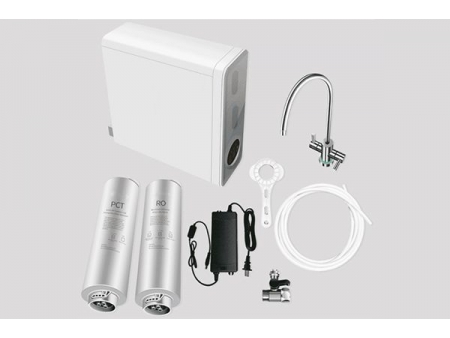

RO Water Filter System and Parts
