Boiler Projects

Request a Quote

View All: http://shanghaielectric-smec.com

660~300MW Thermal Power Boilers

300MW CFB	300MW Class

Main steam flow: 1000t/h	Main steam flow:1000-1200t/h
Main steam pressure: 17.4Mpa	Main steam pressure: 17.4-18.6
Main steam temperature: 540℃	Main steam temperature: 540℃
Produce experience :22	Products experience : 301

600MW Class

Main steam flow: 2000t/h
Main steam pressure: 17.4/25.4
Main steam temperature:540/571℃
Product experience : 212

1000MW Thermal Power Boilers

1000MW – Tower	1000MW – π

Main steam flow: 3000t/h	Main steam flow: 3000t/h
Main steam pressure:28.0Mpa	Main steam pressure:27.6Mpa
Main steam temperature:605℃	Main steam temperature : 605℃
Product experience: 46	Product experience: 18

Other Thermal Power Boilers

50MW Class	135MW Class

Main steam flow : 220-280t/h	Main steam flow : 420-680t/h
Main steam pressure : 9.8Mpa	Main steam pressure: 13.7-14.3
Main steam temperature : 540 ℃	Main steam temperature: 540℃
Products experience : 197	Products experience : 322

50MW CFB	135MW CFB

Main steam flow : 220t/h	Main steam flow: 420 t/h
Main steam pressure: 9.8Mpa	Main steam pressure : 13.7Mpa
Main steam temperature : 540℃	Main steam temperature : 540 ℃
Produce experience: 32	Produce experience:47(400-490t/h) 8(670-690t/h)

By the end of 2009, Shanghai Electric had supplied a total of 1,338 boiler units, representing a total installed capacity of 206.46 million kilowatts.

Shanghai Electric is the earliest major state-owned enterprise established by China for the design and manufacturing of utility boilers. The group has strong design, manufacturing, service and management teams. It possesses first-class manufacturing and an inspection facilities compared with its domestic and international counterparts. Its product quality has achieved internationally advanced levels. The products are sold throughout China and in more than 20 countries such as the USA, Canada, Egypt, Japan, India, Vietnam, Pakistan and Singapore.

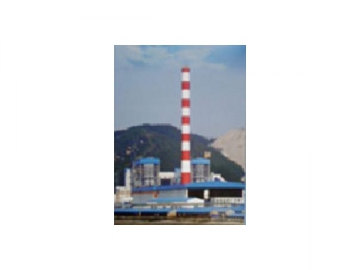

Ultra-supercritical boiler

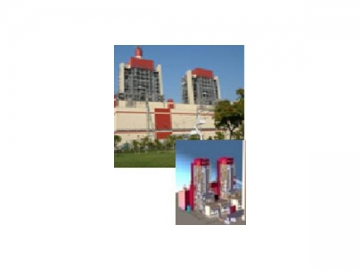

Ultra-supercritical boiler
Brown coal boiler

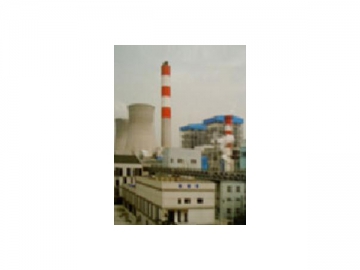

Arch fired boiler

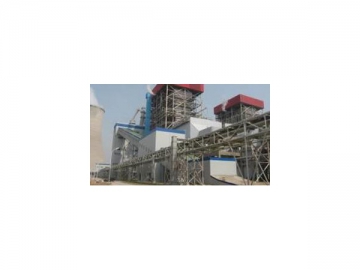

Utility boilers

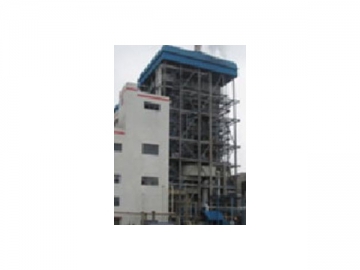

Industry boilers

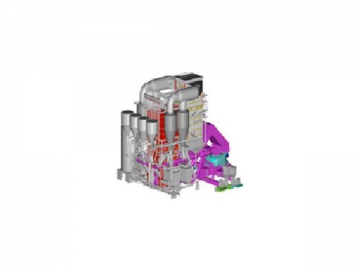

CFB

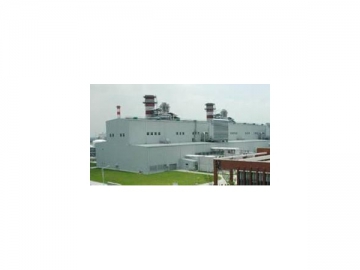

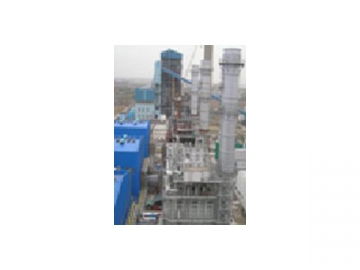

HRSG
