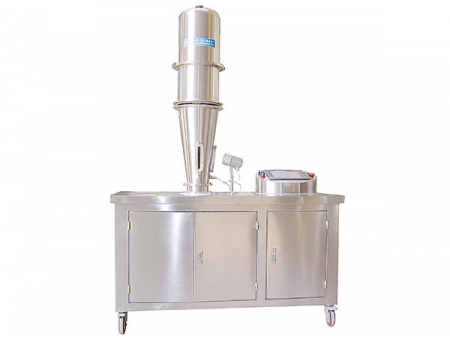

Fluid Bed Granulator Coater
Request a Quote
This series of fluid bed granulator coater integrates granulation, coating, fluidization and drying. It is mainly applied for granulating materials for pharmaceutical, chemical, foodstuff and other industrial applications. The processed granules are pressed into tablets and capsules, and fluid bed feed coater can be used to make flavorings.
Mixing: Various kinds of fluidizable materials, such as powder, granules, micro-granules, etc. Because of multi-dimensional movement (horizontal, tangent and radial direction), the mixing effect is very good.
Granulating: Spray adhesive onto powder to produce granules with various diameters.
Technical ParametersSpecification | DLB- | 5 | 15 | 30 | 60 | 120 | 300 | 500 |
max working capacity(L) | up spray | 22 | 45 | 100 | 420 | 620 | 1100 | 2000 |
down spray | 15 | 35 | 90 | 400 | 550 | 900 | 1600 | |
electric heater power (kw) | 21 | 27 | 45 | 81 | 135 | 234 | 315 | |
range of temperature (°C) | 0-120automatically regulated | |||||||
consume of steam (kg/h) | 60 | 100 | 180 | 220 | 366 | 600 | 1000 | |
power of fan (kw) | 5.5 | 11 | 15 | 22 | 30 | 55 | 75 | |
amount of compressed air (m3/min) | 0.6 | 0.6 | 0.9 | 1.1 | 1.3 | 3.0 | 4.0 | |
weight (kg) | 1450 | 1800 | 2600 | 3450 | 4000 | 6500 | 8000 |
sizes | A1 | A2 | A3 | B | C | ΦD | E1 | E2 | G |
5 | 3210 | 3210 | 2810 | 2140 | 920 | 500 | 3260 | 2610 | 740 |
15 | 4060 | 4060 | 3660 | 2280 | 970 | 800 | 4100 | 3410 | 970 |
30 | 4400 | 4400 | 4000 | 2520 | 1130 | 1200 | 4600 | 3750 | 1420 |
60 | 4800 | 4800 | 4400 | 2900 | 1180 | 1400 | 5000 | 4100 | 1620 |
120 | 5100 | 5100 | 4700 | 3000 | 1380 | 1500 | 5300 | 4400 | 1620 |
300 | 5760 | 5760 | 5490 | 3465 | 1840 | 1800 | 6500 | 5090 | 1990 |
500 | 6630 | 6630 | 6360 | 4145 | 2145 | 2700 | 7590 | 5960 | 2960 |
