Hydraulic Drilling Jumbo with Automatic Rod Changer, CYTC76 (for Mining Production)

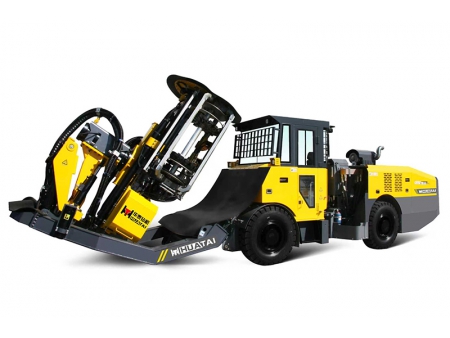

CYTC76 hydraulic drilling jumbo features compact design, which is used for small and medium sized mines. With flexible design, this mining equipment can be used for drilling horizontal and fan-shaped holes on vertical and inclined plane in underground mine or tunnels.
With high automation, this underground jumbo drilll features automatic rod change. It's suitable for the drifts and tunnels with a section larger than 3.8m×3.8m.
The underground rock drilling machine features a working platform for easy boom movement in horizontal direction, high precision drill angle indication system, remotely controlled operation platform, and high performance drifter, which ensures drilling jobs are performed in an efficient, safe and quick manner. In addition, the mining jumbo comes with remote access, enabling operations to be performed in a remote manner. This significantly improves the mining production efficiency.
- Drifter
- Control system for anti-jamming, and electro hydraulic proportional control
- Chassis with Cummins diesel engine
- Boom with large tilt/lift angle
| Overall dimensions (L×W×H) | 8810×2390×2200（2910）mm |
| Drifter | RC2200, 22U |
| Power (drifter) | 21 kW / 22 kW |
| Total length (feed) | 3160 / 3456 mm |
| Drill rod length | 1220 /1520 mm |
| Hole depth | 33/41m |
| Feed force | 14 kN |
| Feed extension | 900mm |
| Boom (lift/tilt angle) | 25° 65° |
| Horizontal hole | 1500 mm |
| Guide shell rotatry angle | ±180° |
| Main motor power | 75 kW |
| Rated voltage | 380V (customized) |
| Gradeability | 14° |
| Overall weight | 16.5 T |
| Cable length | 70 m |
