KJ 313 Hydraulic Top Hammer Drilling Jumbo

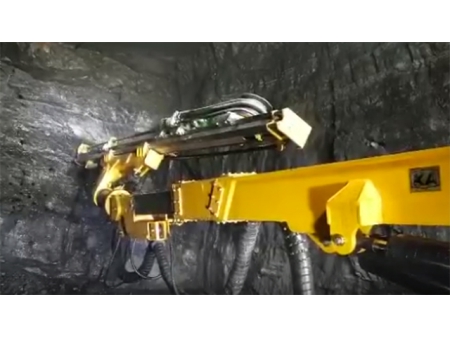

KJ311 underground top hammer drilling rig was used for blast hole drilling in tunneling in 2019
KJ313 -type full-hydraulic tunnel jumbo is applicable for hard-rock mine tunneling operation of 12-35m2 section, which is specially designed for hitting anchor rod at the same time. It can be used to drill 2.2m-depth bolt hole in the roadway with the height of 4m.
Solid universal arm is equipped with the best section covering shape, and the propulsion beam can turn over by 360° and level off automatically, so as to be convenient for quickly achieving drilling and positioning. Meanwhile, the drill boom can be also used for laterally opening cross drift and anchor-hold drilling operation.
The arrangement of drill carriage shall ensure the view of the manipulator in good condition. The arrangement is in balance condition. The strong four-wheel-drive articulated base plate can ensure that the drill carriage travels flexibly, quickly and safely in the narrow roadway.
High-frequency impact jack drill optimizes the transmission efficiency of impact wave, enhances the drilling rate, reduces consumption of drilling tools and enhances the serviceability rate of equipment by adopting stair piston;
Spacious operation space and a series of automatic functions are conducive for the driver concentrating to safely, quickly and accurately drill.
Each maintenance part is protected well and easy to access and maintain at the same time.
Boundary dimension (including optical auxiliary power station)
Section hint
| Boundary dimension and weight | ||
| Length | 11300mm | |
| Width | 1750mm | |
| Height | 2000/3000 mm | |
| Weight | 12000 kg | |
| Running speed (Horizontal) | 10 km/h | |
| Maximum grade ability | 0.25 | |
| Safety protection | ||
| Noise level | < 100 dB(A) | |
| Adjustable security ceiling | Meet anti-rolling and anti-rock fall requirement | |
| Drilling system | ||
| Rock drill | 1×HC50/R38 | 1×HC109/R38 |
| Impact power | 13kW | 18.8kW |
| Impact flow | 105L/min | 135L/min |
| Surge pressure | 130bar | 135bar |
| The maximum rotary pressure | 150bar | 150bar |
| Frequency | 62 Hz | 47 Hz |
| Torque | 325Nm | 780Nm |
| Hole diameter | 32-89mm | 45-102mm |
| Turnover of propulsion beam | 360° | |
| Compensative travel of propulsion beam | 900mm | |
| drill boom | ||
| type | K26F | |
| form | Automatic level off | |
| Flexible drill boom | 1200mm | |
| Electric hydraulic power pack | ||
| Electric motor | 45kW/55kW | |
| Three-phase motor | ||
| Impact/ propulsion/drill boom | Axial variable displacement piston pump | |
| Rotation | Gear pump | |
| Filter fineness | 10μ | |
| Hydraulic oil tank | 240L | |
| Hydraulic cooler | Water cooler | |
| Operating voltage | 380V | |
| Frequency | 50Hz | |
| Startup method | Star delta | |
| Cable Reel | 1×K440 | |
| Cable capacity of reel | 100m/80m | |
| External diameter of cable | Φ28mm/Φ32mm | |
| Specification of the cable | 3×35 3G6 2×1.5 | |
| 3×50 3G6 2×1.5 | ||
| Wind and water circuit system | ||
| Air compressor | 1×JN5 | |
| Displacement | 0.5m3/min | |
| Pressure | 5-7bar | |
| Shank lubrication device | Pressure oil lubrication tank/electromagnetic lubrication pump | |
| Gas consumption for lubrication | 0.3m3/min | |
| Oil consumption for lubrication | 180-250g/h | |
| Water pump | 1×CR3 | |
| Power | 1.5kW | |
| Pump output | 3m3/h | |
| Base plate | ||
| Diesel engine | BF4L2011 53kW，2800rpm | |
| Tail gas clean-up | Power gas catalyst | |
| Transmission system | Four-wheel-drive closed-type travelling system | |
| Hunting angle | ±10°Swing of rear axle | |
| Tire | 11.00-20 | |
| Steering mechanism | ±40°Articulated steering | |
| Travel braking | Double-circuit hydraulic brake | |
| Parking braking | Multi-disk wet brake of reducer | |
| Fuel tank | 60L | |
