Scissor Lift with Pulling Device

Request a Quote

View All: http://aerialwork-platform.com/1-1-6-scissor-lift-with-pulling-device.html

QSJY Aerial Work Platform

Mobile elevating work platform with 500kg capacity, up to 12000mm platform height

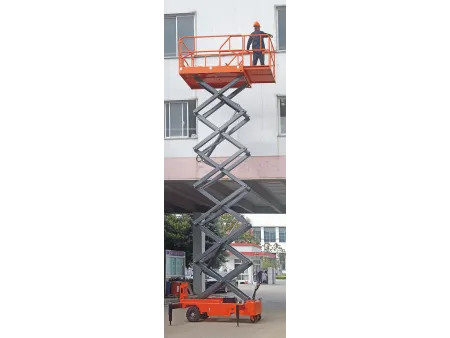

The scissor lift with pulling device is powered by a 1300W drive wheel assembly, allowing workers to operate the lift’s movement and elevation directly from a ground control handle, significantly reducing effort and enhancing efficiency compared to standard models. Equipped with outriggers for added stability and a platform capable of supporting multiple operators, this lift is ideal for a wide range of high-altitude tasks. Its spacious platform and high load capacity make it suitable for tasks requiring collaborative operations in settings such as factory workshops, plazas, lobbies, airports, and industrial parks.

The lift is composed of seven main components: a lifting platform, scissor lift arms, lift cylinders, hydraulic control system, outriggers, base frame, and driving system.

500kg
12000mm

Specifications

Model Number	Unit	QSJY0.5-6	QSJY0.5-8	QSJY0.5-10	QSJY0.5-12
Max. Platform Height	mm	6000	8000	10000	12000
Min. Platform Height	mm	1050	1175	1300	1425
Platform Size	mm	2270×1150
Rated Lift Capacity	kg	500	500	500	500
Outrigger Footprint Size	mm	2700×2200	2700×2200	2700×2200	2700×2200
Lifting Time	s	50	50	80	80
Driving Motor	V/kW	24/1.2	24/1.2	24/1.2	24/1.2
Lifting Motor	V/kW	24/2.2	24/2.2	24/3	24/3
Battery	V/Ah	2×12/120	2×12/120	2×12/120	2×12/120
Charger	V/A	24/15	24/15	24/15	24/15
Motor Power	kW	2.2	2.2	3	3
Overall Length	mm	2670
Overall Width	mm	1300	1300	1300	1300
Overall Height (Guardrail Folded)	mm	1730	1855	1980	2105
Overall Net Weight	kg	1380	1560	1970	2150

Features

Equipped with dual control safety buttons, low-voltage operation, one-touch emergency stop, and an emergency lowering system to enhance operator safety
Includes an emergency pressure relief lowering valve and a height limit switch for safe operation
Four detachable outriggers are mounted on the base to ensure platform stability during use.
Two balancing wheels on either side of the drive wheel prevent tilting during turns, ensuring stability.
Emergency Stop Buttons installed on both the top and bottom of the platform for quick response in case of emergencies.

Applications

The scissor lift with pulling device is suitable for industrial facility maintenance, municipal installation and maintenance, as well as various airport operations.

Main Options

Standard Features

Non-marking tires
Folding guardrails
Emergency lowering valve
Emergency stop button
Self-closing gate
Ladder

Optional Features

Platform extension

Detail Features

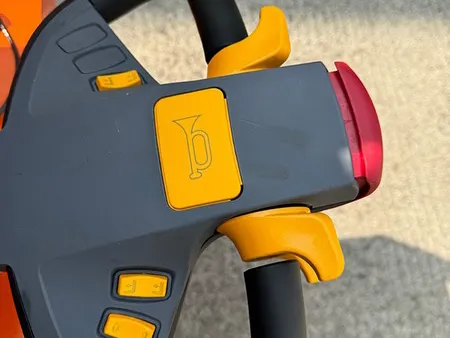

Control handle

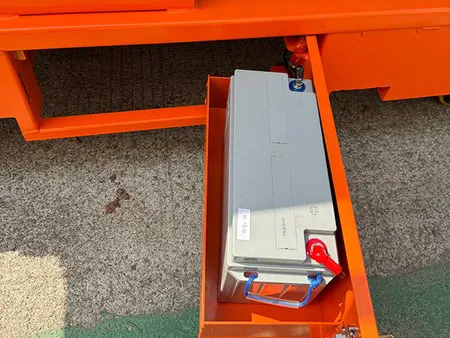

Batteries are stored in side compartments for easy removal and replacement.

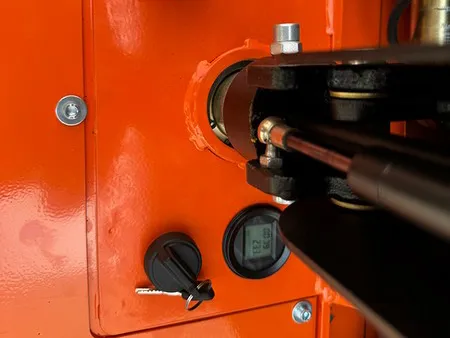

Emergency stop switch, key switch, battery meter, and charging signal light are all located in the same area, ensuring easy access and operation.
