DCF20 Scissor Lift Control Valve
Request a Quote

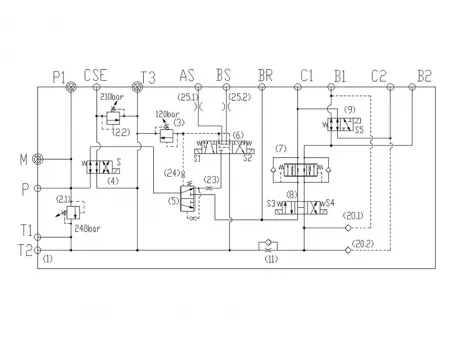

Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift
- Modular, compact design engineered for safe and reliable hydraulic control
- Patented valve block with integrated travel counterbalance valve to enhance overall machine stability
- Designed to reduce pressure loss by over 20% compared to cartridge valve solutions, improving energy efficiency and extending operating time
Applications
Developed for hydraulically driven scissor lift platforms, this control valve manages all essential functions of the aerial work platform such as lifting and lowering operations, precision steering control, brake management as well as travel direction and speed adjustment (fast and slow modes).
Specifications
| Max. Operating Pressure | 250bar |
| Rated Flow | 20L/min |
| Voltage | DC20V±10% |
| Fluid Temperature Range | -30℃～110℃ |
| Ambient Temperature Range | -30℃～110℃ |
| Surface Treatment | Nickel plated |
| Oil Viscosity Range | ISO 20～400mm²/s |
