Rail-Guided Scissor Lift

Request a Quote

View All: http://aerialwork-platform.com/1-1-7-rail-guided-scissor-lift.html

GSJT Aerial Work Platform

Mobile elevating work platform with 150/200kg capacity, up to 6000mm working height

Designed to operate efficiently and safely in environments with poor air circulation, the rail-guided scissor lift combines a fully electric drive system with emission-free operation. Perfect for indoor applications and eco-conscious settings, this electric elevating work platform ensures efficiency, safety, and environmental compliance.

Applications

It is widely used in orchard harvesting, facilitating fruit picking operations, and for industrial rail tracks, supporting maintenance and operational tasks.

150/200kg
6000mm

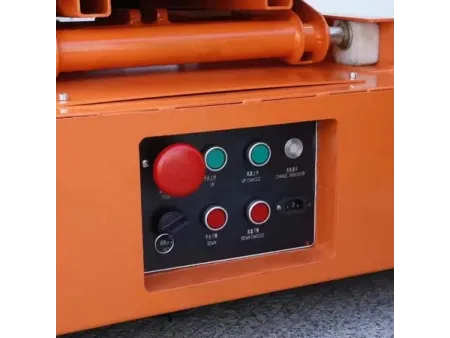

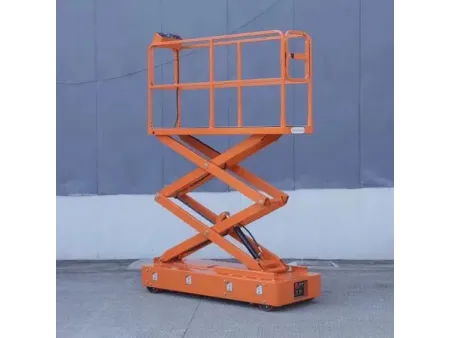

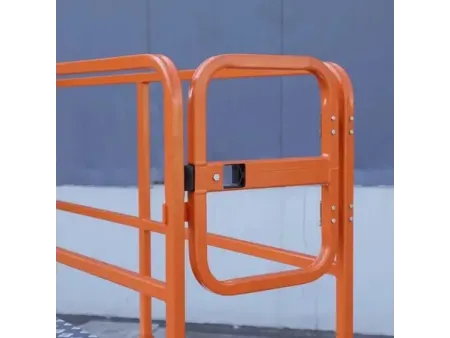

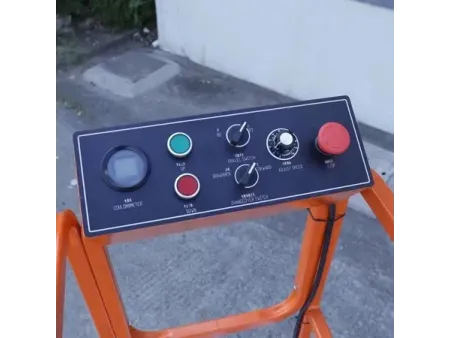

Photo Gallery

Specifications

Model Number	Unit	GSJT0.2-3	GSJT0.2-4	GSJT0.2-3W	GSJT0.2-4W
Rated Lift Capacity	kg	200	150	200	150
Max. Working Height	mm	5000	6000	5000	6000
Max. Platform Height	mm	3000	4000	3000	4000
Min. Platform Height	mm	600	705	600	705
Overall Length	mm	1935
Overall Width	mm	770	770	1020	1020
Overall Height	mm	1655	1760	1655	1760
Platform Size	mm	1910×510	1910×510	1910×650	1910×650
Ground Clearance	mm	70
Rail Center Distance	mm	550	550	800	800
Diameter/Thickness of Rail	mm	48/2.5-4.0
Driving Motor	V/kW	24/0.5
Lifting Motor	V/kW	24/2.2
Drive Speed	km/h	0-3.5
Lifting/Lowering Speed	sec	12/14	18/20	12/14	18/20
Battery	V/Ah	2×12/80	2×12/80	2×12/108	2×12/108
Charger	V/A	24/15
Wheel Size (Diameter×Width)	mm	Ø200×50
Overall Net Weight	kg	520	590	590	660
