6829H Coach (Spring)
Request a Quote

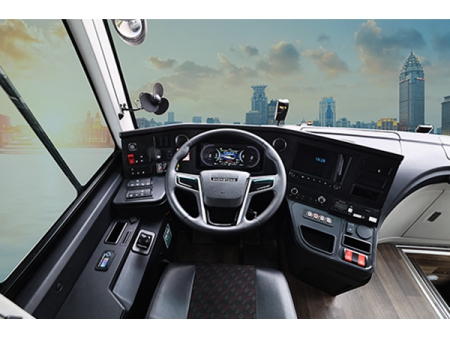

The 6829H coach draws on the design elements of the H-series, featuring a simple, modern, and stylish design that combines modern aesthetics for an outstanding visual appeal. The interior layout has been optimized and upgraded, incorporating ergonomically designed seats that improve operational efficiency while enhancing passenger comfort. Adopting a user-centric design language, the coach bus emphasizes technology to deliver a pleasant driving and riding experience, making operation easier and enhancing driving safety.
Features- Equipped with a premium powertrain combination of a Weichai brand engine, fast gearbox, and handle axle, providing a fully integrated power solution. The vehicle incorporates advanced integrated control technologies to ensure efficient, energy-saving, and reliable operation.
- The maintenance-free axle features an optimized structural design, delivering stable and dependable performance, a long service life, and reduced maintenance requirements, thereby lowering both time and cost.
- The entire vehicle adopts professional sound insulation and noise reduction measures. Sound-absorbing materials are added to the roof, side panels, and engine compartment, significantly reducing interior noise levels.
| Model | LCK6829H6Q1 | Engine (Brand/Model) | Weichai WP5NQ245E62 |
| Rated power (kW) | 177 | Max. torque (N·m) | 850 |
| Emission standard | China VI | Rated passenger capacity | 24-36 |
| Length (mm) | 8245 | Gross vehicle weight (kg) | 12200 |
| Width (mm) | 2540 | Front/rear overhang (mm) | 1900/2445 |
| Height (mm) | 3365 | Approach/departure angle (°) | 13/10 |
| Interior height (mm) | 1930 | Max. speed (km/h) | 100 |
| Wheelbase (mm) | 3900 | Tyre size | 255/70R22.5 |
| Luggage compartment volume (m³) | ≤3.6 | Max. seating capacity | 35 1 |
| Category | Item | Description | |
| Body structure | Frame type | Monocoque (integral body) | |
| Floor type | Low floor (sunken floor) | ||
| Power system | Powertrain | WP5NQ245E62 fast gearbox WP4.6NQ220E50 fast gearbox | |
| Running system | Suspension | 6 airbag air suspension | |
| Axle (maintenance-free) | Integrated bearing unit maintenance-free wheel hub | ||
| Tyres | 255/70R22.5 | ||
| Rims | Steel/aluminum rims | ||
